Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
      G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Drain engine coolant. Ref. to COOLING (H6DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Drain the engine oil. Ref. to LUBRICATION (H6DO)>Engine Oil>REPLACEMENT .
  5. Remove the chain cover, Ref. to MECHANICAL (H6DO)>CHAIN COVER>REMOVAL .
  6. Remove the timing chain assembly. Ref. to MECHANICAL (H6DO)>TIMING CHAIN ASSEMBLY>REMOVAL .
  7. Remove the oil pan lower, Ref. to LUBRICATION (H6DO)>Oil Pan>REMOVAL .
  8. Remove the strainer from the oil pump.
  9. Remove the liquid gasket from the strainer and oil pump.

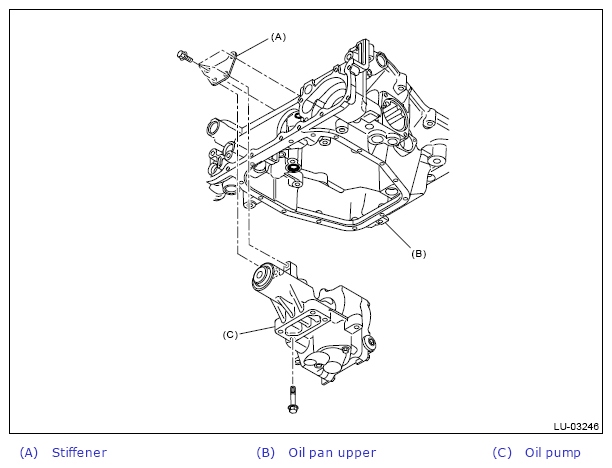

  10. Remove the stiffener and the oil pump.
    G13248458Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the O-ring from oil pan upper.
    G10264236Courtesy of SUBARU OF AMERICA, INC.
