Chain Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: When replacing a single part, perform the work with the engine assembly installed to body.
  1. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Remove the radiator. Ref. to COOLING (H6DO)>RADIATOR>REMOVAL .
    2. Remove the front exhaust pipe. Ref. to EXHAUST (H6DO)>FRONT EXHAUST PIPE>REMOVAL .
    3. Remove the engine mounting. Ref. to MECHANICAL (H6DO)>Engine Mounting>REMOVAL .
  2. Drain the engine oil. Ref. to LUBRICATION (H6DO)>ENGINE OIL>REPLACEMENT .
  3. Remove the V-belts. Ref. to MECHANICAL (H6DO)>V-belt>REMOVAL .
  4. Remove the crank pulley. Ref. to MECHANICAL (H6DO)>Crank Pulley>REMOVAL .
  5. Remove the oil cooler pipe from the chain cover.
    G10263983Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the chain cover.
    NOTE: Chain cover installation bolt has three different sizes. To prevent the confusion in installation, keep these bolts on container individually.

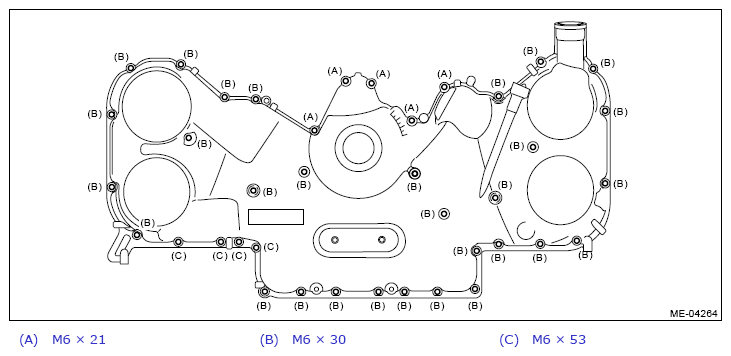

    G13248191Courtesy of SUBARU OF AMERICA, INC.
