Outer Mirror Assembly: Removal

Refer to "DISASSEMBLY" for removal procedures of scalp cap and mirror face. Ref. to GLASS/WINDOWS/MIRRORS>Outer Mirror Assembly>DISASSEMBLY .

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .
3. Turn over the sealing cover - front door.
   CAUTION:

   • Carefully remove the butyl tape. Excessive force will easily break the sealing cover - front door.
   • If the sealing cover - front door gets broken, replace it with a new part.
   • Be careful not to allow the butyl tape to contact any trims and seats because the butyl tape, which has a strong adhesive force, is difficult to remove once it adhered.

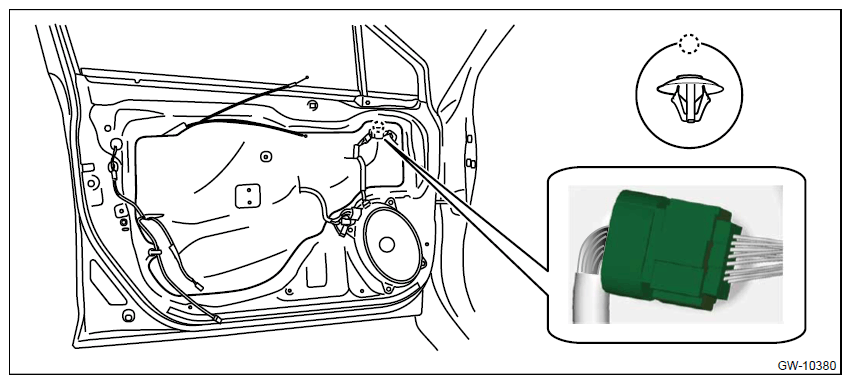

   1. Remove the connector clip that is installed on the panel assembly - front door, and disconnect the connector.
   2. Carefully remove and turn over the sealing cover - front door within the area where the operation can be performed.

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the bolts to remove outer mirror assembly.

   Courtesy of SUBARU OF AMERICA, INC.
