Extension Case: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .

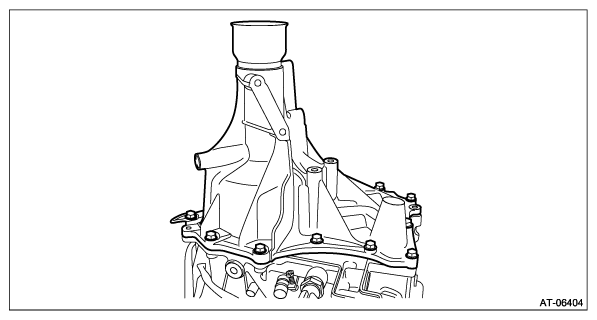

  2. Remove the extension case and transmission hanger.
    NOTE: The total number of extension case mounting bolts is 13.
    G12476245Courtesy of SUBARU OF AMERICA, INC.

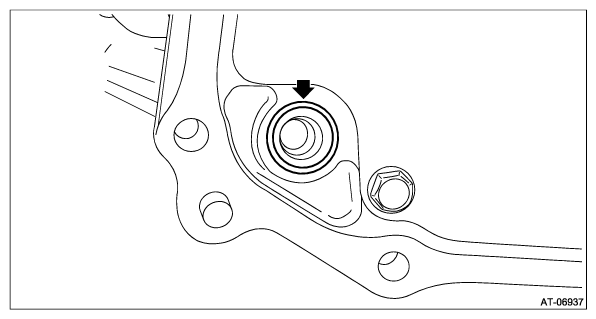

  3. Remove the O-ring.
    G12476246Courtesy of SUBARU OF AMERICA, INC.
