Automatic Transmission Assembly: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>REMOVAL .

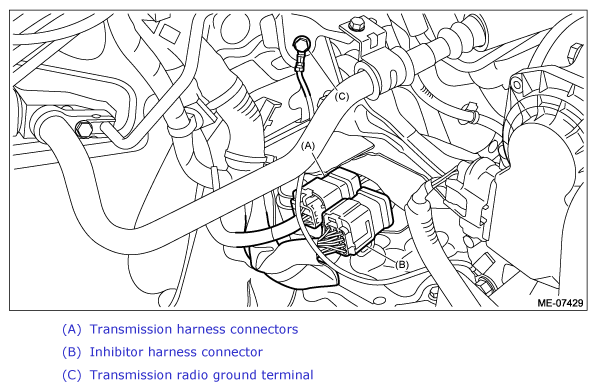

  3. Disconnect the following connectors.
    • Transmission harness connectors
    • Inhibitor harness connector
    • Transmission radio ground terminal
      G12476066Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>Starter>REMOVAL .

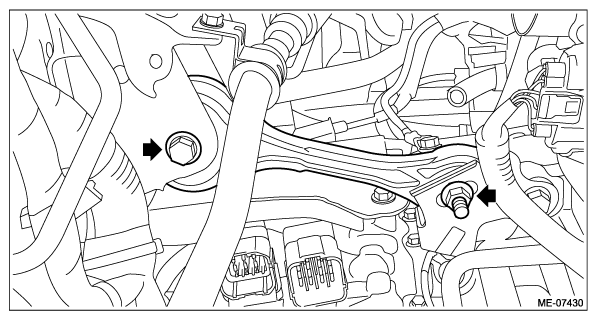

  5. Remove the pitching stopper.
    G12476067Courtesy of SUBARU OF AMERICA, INC.

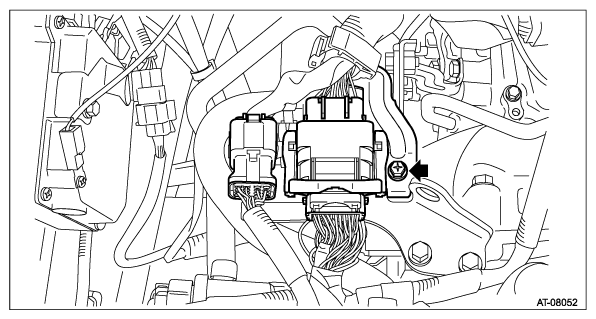

  6. Remove the harness bracket, and then remove the engine harness connector.
    G12476068Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the EGR control valve harness connector, throttle position sensor harness connector and manifold absolute pressure sensor harness connector.

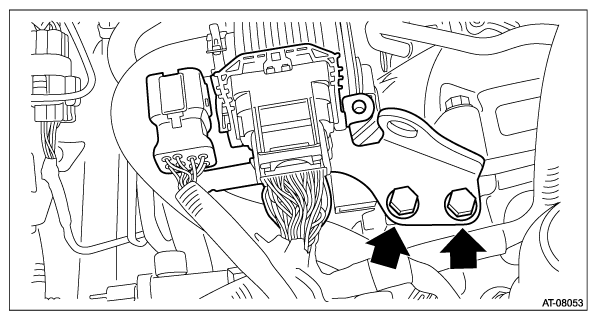

  8. Remove the engine rear hanger.
    G12476069Courtesy of SUBARU OF AMERICA, INC.

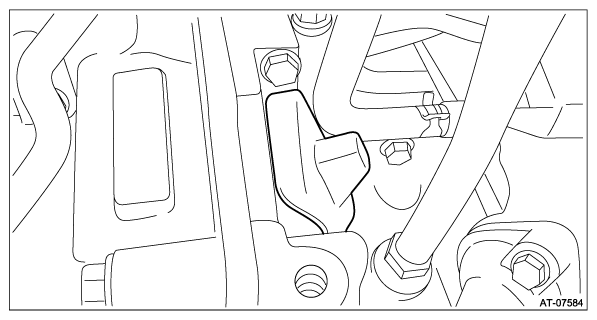

  9. Remove the service hole plug.
    G12476070Courtesy of SUBARU OF AMERICA, INC.

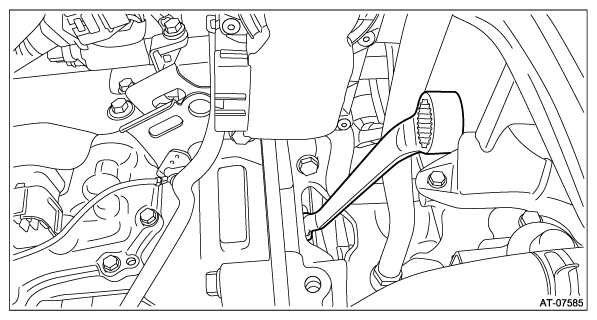

  10. Remove the four bolts combining the torque converter and drive plate while rotating the crank pulley a little at a time in the same direction as engine revolution.
    CAUTION:
    • Be careful not to drop bolts into the converter housing.
    • Be careful not to damage the mounting bolts.
    G12476071Courtesy of SUBARU OF AMERICA, INC.
  11. Make sure the torque converter moves freely by rotating with finger through the starter installation hole.

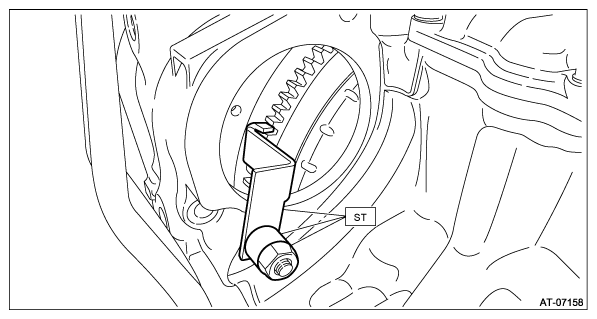

  12. Attach the ST to the converter case.

    ST 498277200 STOPPER SET

    G12476072Courtesy of SUBARU OF AMERICA, INC.

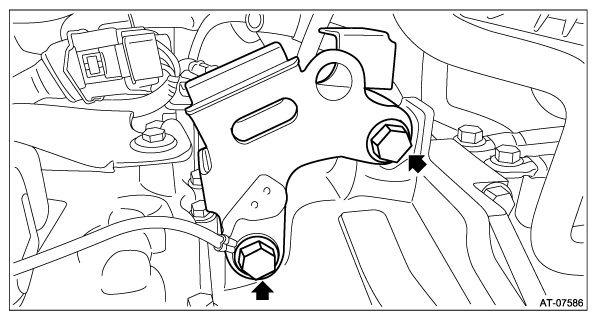

  13. Remove the air breather hose from the pitching stopper bracket, and then remove the pitching stopper bracket and transmission radio ground cord.
    G12476073Courtesy of SUBARU OF AMERICA, INC.

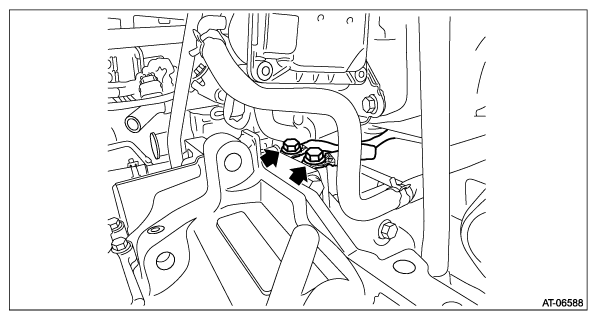

  14. Remove the engine ground terminal.
    G12476074Courtesy of SUBARU OF AMERICA, INC.

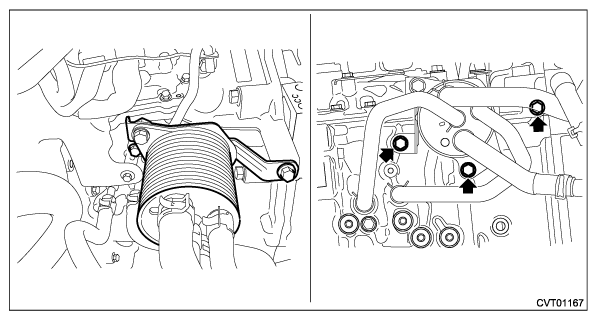

  15. Remove the CVTF cooler (with warmer feature) from the transmission, and using a piece of wire, affix to a location of the body where it will not interfere with the removal/installation of the transmission.
    G12476075Courtesy of SUBARU OF AMERICA, INC.

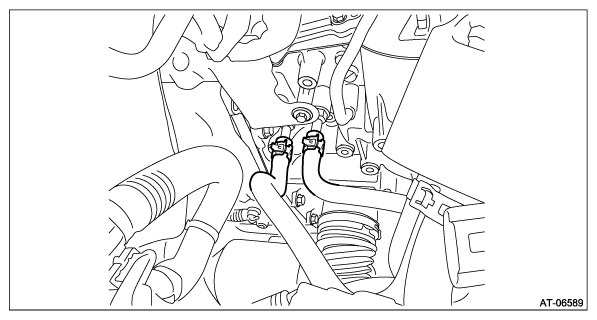

  16. Remove the CVTF inlet hose and outlet hose from the pipe.
    G12476076Courtesy of SUBARU OF AMERICA, INC.

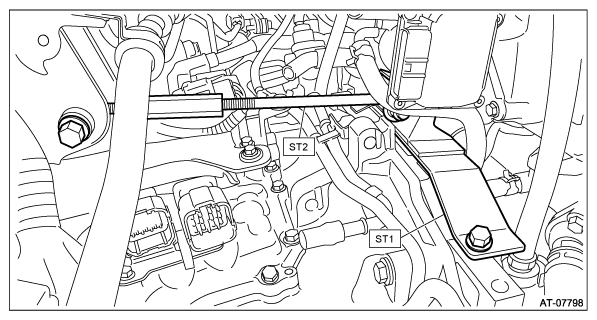

  17. Set the ST.

    ST1 41099AA012 ENGINE SUPPORT BRACKET

    ST2 41099AA020 ENGINE SUPPORT

    G12476077Courtesy of SUBARU OF AMERICA, INC.

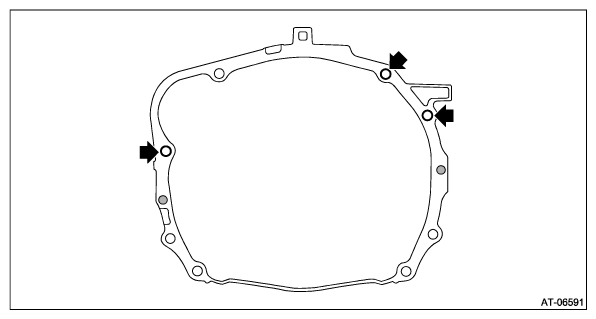

  18. Remove the three transmission connecting bolts.
    G12476078Courtesy of SUBARU OF AMERICA, INC.
  19. Lift up the vehicle.
  20. Remove the front tires. Ref. to WHEEL AND TIRE SYSTEM>Tire and Wheel>REMOVAL .
  21. Remove the under cover - front and the under cover front - transmission.
  22. Remove the center exhaust pipe. Ref. to EXHAUST (H4DO)>Center Exhaust Pipe>REMOVAL .

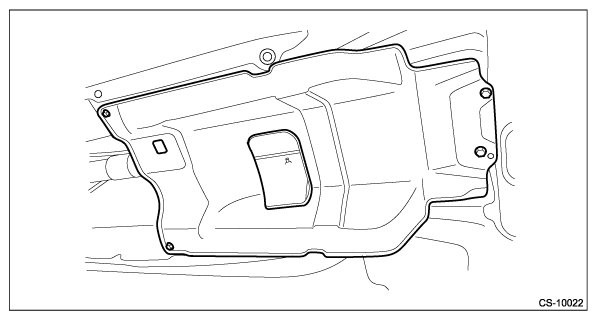

  23. Remove the center exhaust cover.
    G12476079Courtesy of SUBARU OF AMERICA, INC.
  24. Remove the CVTF drain plug to drain CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>REPLACEMENT .
  25. Drain differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Differential Gear Oil>REPLACEMENT .

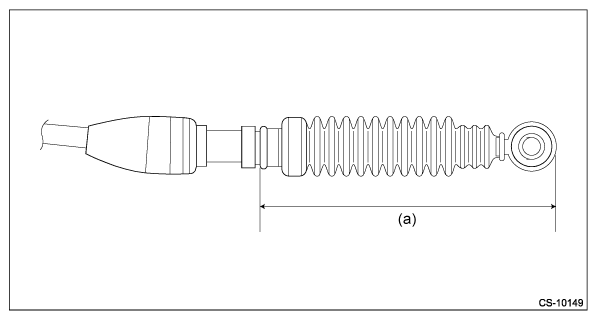

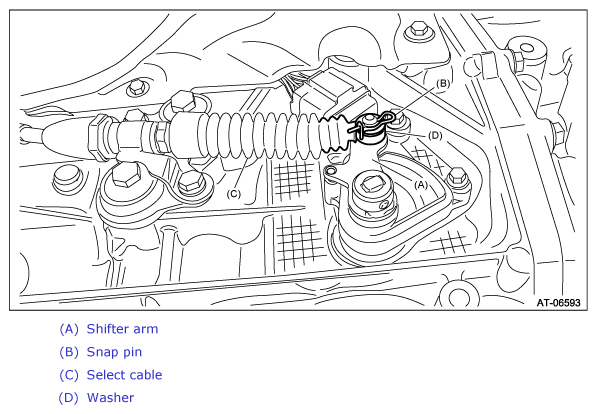

  26. Remove the snap pin and washer from shifter arm and remove the select cable from shifter arm.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12476080Courtesy of SUBARU OF AMERICA, INC.
    G12476081Courtesy of SUBARU OF AMERICA, INC.

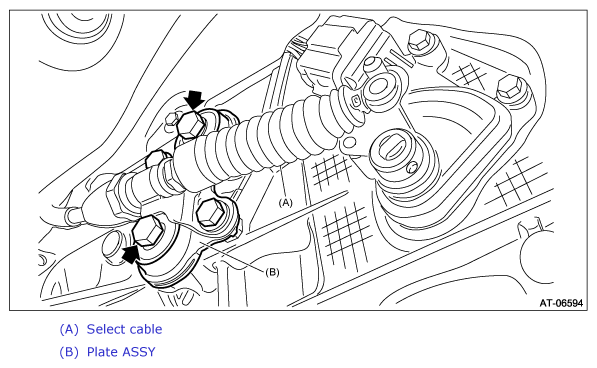

  27. Remove the plate assembly from the transmission case.
    G12476082Courtesy of SUBARU OF AMERICA, INC.
  28. Remove the propeller shaft. Ref. to DRIVE SHAFT SYSTEM>Propeller Shaft>REMOVAL .

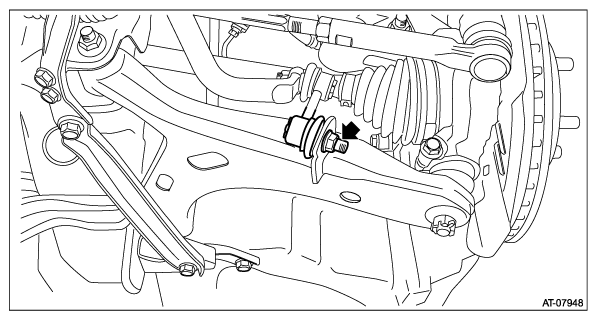

  29. Disconnect the stabilizer link from the front arm.
    G12476083Courtesy of SUBARU OF AMERICA, INC.

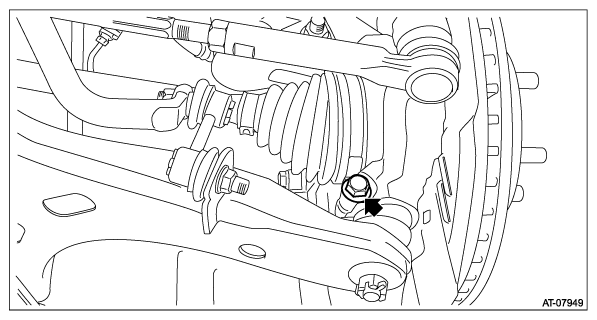

  30. Remove the bolts which secure to the front housing, and separate the front arm and housing.
    G12476084Courtesy of SUBARU OF AMERICA, INC.
  31. Using a tire lever or a crow bar, etc., pull out until the front drive shaft transmission side joint slides move smoothly.
    NOTE: Place cloth between the tire lever or bar and the transmission in order to avoid damaging the transmission side retainer.
  32. Hold the transmission side joint of the front drive shaft by hand and extract the housing from the transmission while pressing the housing outward, so as not to stretch the boot.
    NOTE:
    • Before pulling the RH front drive shaft from transmission, turn the steering wheel to the right hand at full lock.
    • Before pulling the LH front drive shaft from transmission, turn the steering wheel to the left hand at full lock.
  33. Remove the hanger bracket.

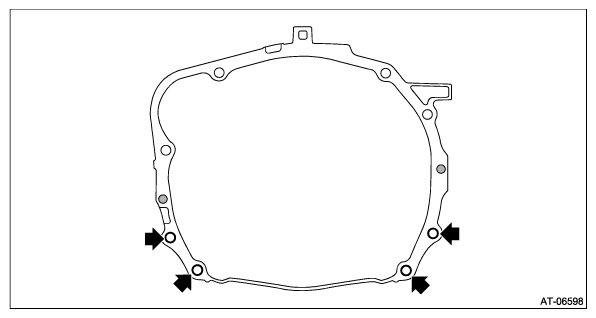

  34. Remove the two transmission connecting bolts and two nuts (lower side).
    G12476085Courtesy of SUBARU OF AMERICA, INC.
  35. Set the transmission jack under the transmission.
    NOTE: Make sure that the support plates of transmission jack do not touch the oil pan.

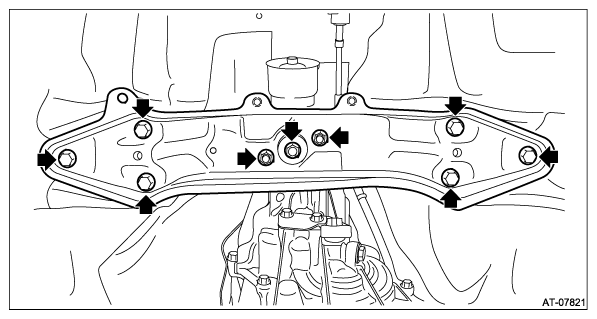

  36. Remove the transmission rear crossmember from the vehicle.
    G12476086Courtesy of SUBARU OF AMERICA, INC.
  37. While lowering the transmission jack gradually, fully retract the engine support, and then tilt the engine rearward.
  38. Remove the transmission assembly.
    NOTE: Remove it while moving the transmission jack up and down so that the engine and transmission remain directly aligned.

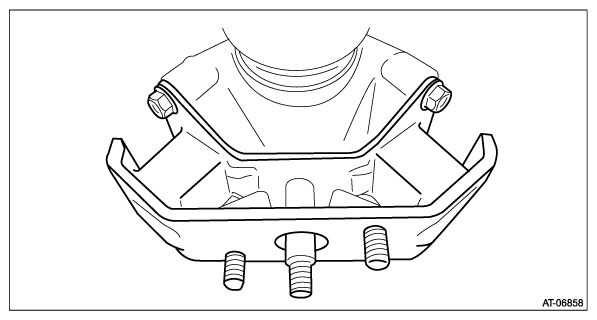

  39. Remove the rear cushion rubber.
    G12476087Courtesy of SUBARU OF AMERICA, INC.
