Transmission Control Device: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the oil pan and control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Control Valve Body>REMOVAL .
  3. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Inhibitor Switch>REMOVAL .

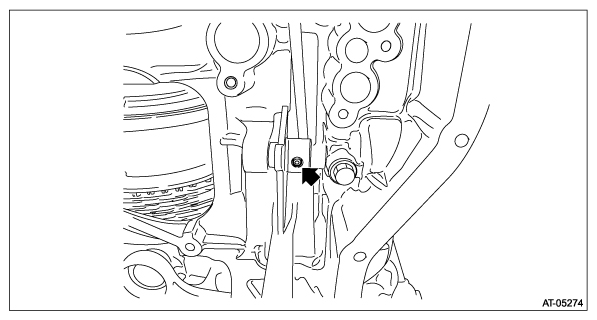

  4. Remove the spring pin.
    NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.
    G12476892Courtesy of SUBARU OF AMERICA, INC.

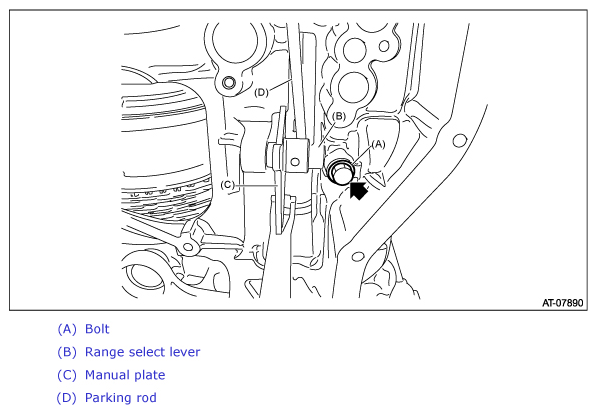

  5. Remove the bolt and remove the range select lever, manual plate and parking rod.
    NOTE: Do not damage the lip of oil seal press-fitted in the case.
    G12476893Courtesy of SUBARU OF AMERICA, INC.

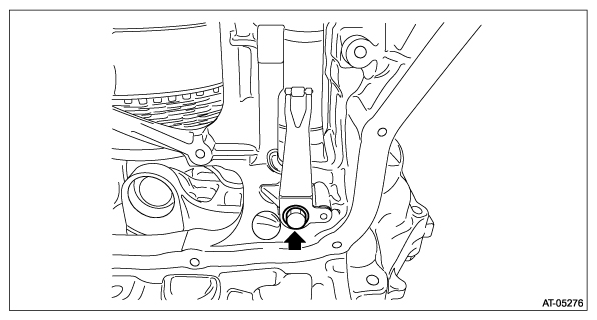

  6. Remove the detent spring.
    G12476894Courtesy of SUBARU OF AMERICA, INC.
