Control Valve Body: Removal

CAUTION:

Directly after the vehicle has been running or the engine has been idling for a long time, the CVTF is hot. Be careful not to burn yourself.
Be careful not to spill CVTF on the exhaust pipe to prevent it from emitting smoke or causing a fire. If the CVTF adheres, wipe it off completely.

NOTE: The control valve body is replaced as an assembly only, because it is a non-disassembly part.

Disconnect the ground cable from battery.
Lift up the vehicle.
Clean the transmission exterior.

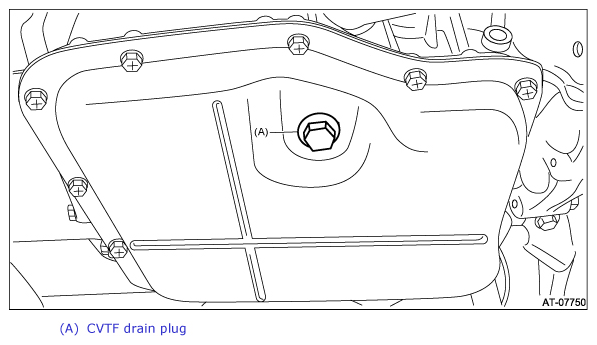

Remove the CVTF drain plug to drain CVTF.

Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF drain plug.
NOTE: Use a new gasket.

Tightening torque:

39.2 N.m (4.0 kgf-m, 28.9 ft-lb)

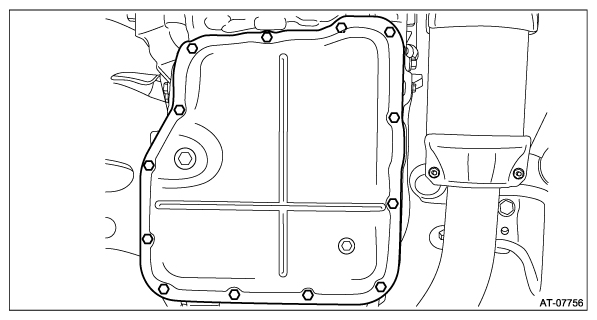

Remove the oil pan.
CAUTION: Be careful not to allow foreign matter such as dust or dirt to enter the oil pan.

Courtesy of SUBARU OF AMERICA, INC.
Remove the magnet.

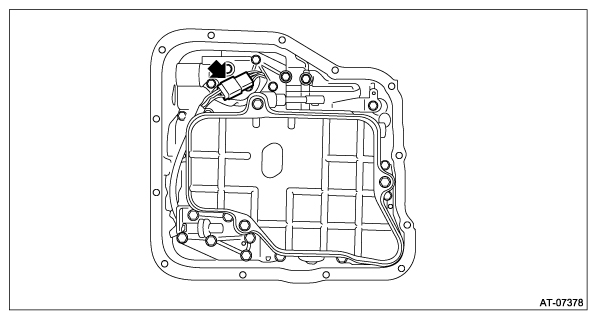

Disconnect the control valve harness connector.

Courtesy of SUBARU OF AMERICA, INC.

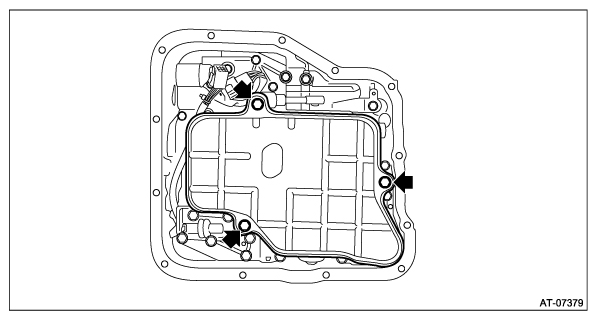

Remove the oil strainer.

Courtesy of SUBARU OF AMERICA, INC.

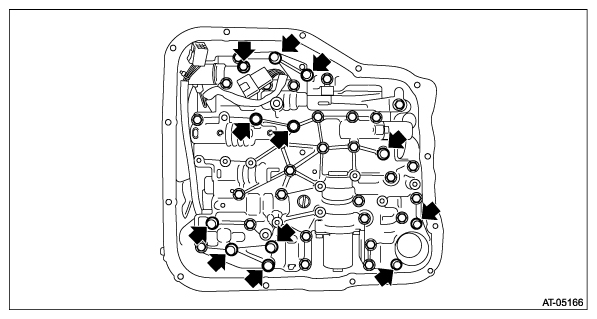

Remove the control valve body.
CAUTION: Do not let the manual valve drop off.

Courtesy of SUBARU OF AMERICA, INC.

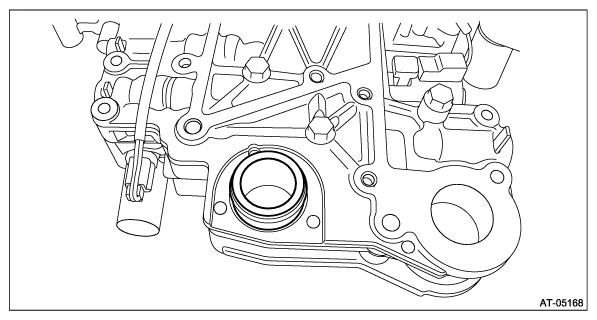

Remove the pressure pipe.
NOTE: It may be located in transmission case side.

Courtesy of SUBARU OF AMERICA, INC.

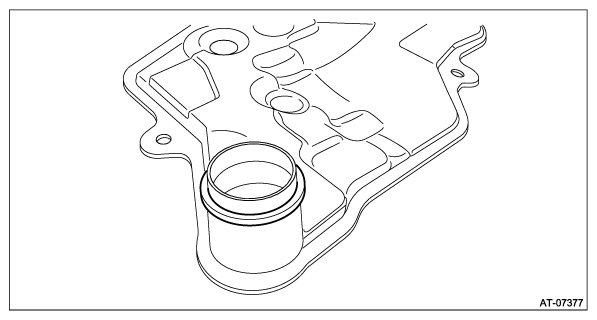

Remove the O-ring from oil strainer.

Courtesy of SUBARU OF AMERICA, INC.

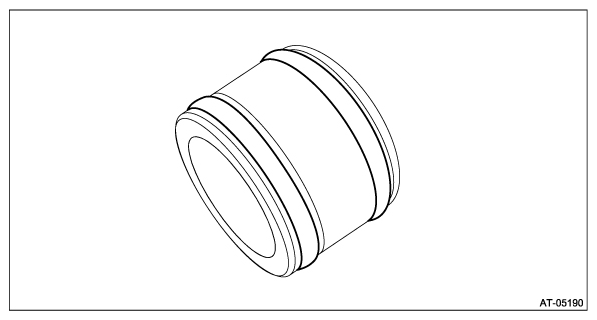

Remove the O-ring from pressure pipe.

Courtesy of SUBARU OF AMERICA, INC.
