Extension Case: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the front wheel speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Front Wheel Speed Sensor>REMOVAL .

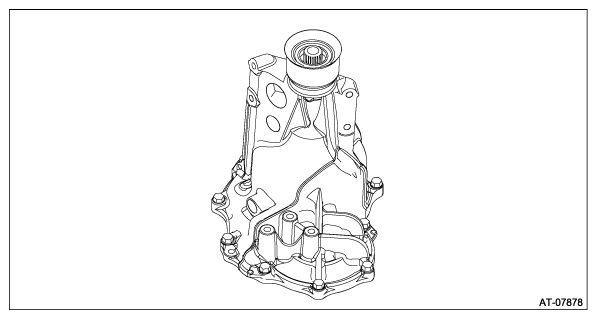

  3. Remove the harness clip, and remove the extension case.
    NOTE: The total number of extension case mounting bolts is 10.
    G12476774Courtesy of SUBARU OF AMERICA, INC.
