Front Wheel Speed Sensor: Removal

CAUTION:
  • Be sure to prevent water or oil from contacting the connector terminal of front wheel speed sensor. If adhesion occurs, replace with a new part.
  • When removing front wheel speed sensor, CVTF may let out. If CVTF has leaked, adjust the CVTF level after installing the front wheel speed sensor.
  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Clean the transmission exterior.
  4. Remove the front wheel speed sensor harness connector.

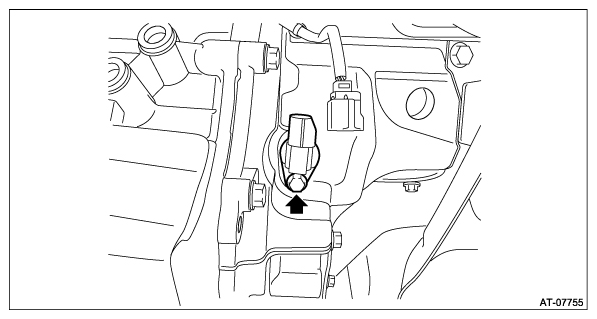

  5. Remove the front wheel speed sensor.
    G12476719Courtesy of SUBARU OF AMERICA, INC.
