Airbag Control Module: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to CAUTION , General Description.
  • Do not disassemble the airbag control module.
  • If the airbag control module is deformed or if there is any trace of water on the module, replace the airbag control module with a new one.
  • Do not drop the airbag control module.
  • After removal, keep the airbag control module on a dry, clean surface away from moisture, heat and dust.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to BATTERY .
    NOTE:
    • For model with battery sensor, disconnect the ground terminal from battery sensor.
    • On CVT models, shift the select lever into "N" before disconnecting the battery ground cable.
  3. Remove the console box assembly and the cover - shift lever. Ref. to REMOVAL , Console Box.
  4. Remove the center grille assembly. Ref. to REMOVAL , Air Vent Grille.
  5. Remove the audio assembly or navigation assembly. Ref. to REMOVAL , Audio.
  6. Remove the airbag control module.
    1. Disconnect the connector from airbag control module. Ref. to AIRBAG CONTROL MODULE , PROCEDURE, Airbag Connector.
    2. Remove the bolt and nuts and remove the airbag control module.

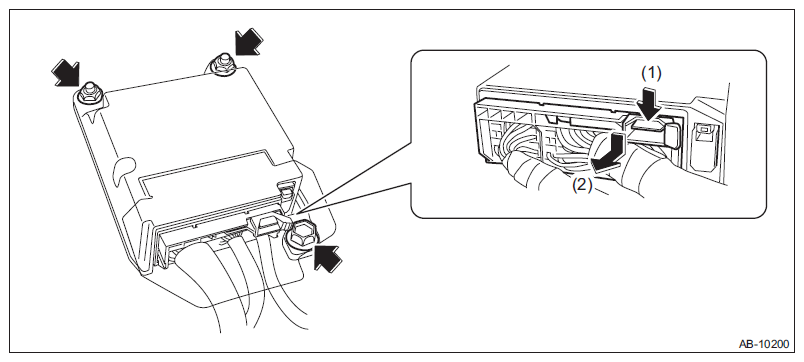

    Fig 1: Removing Airbag Control Module
    G11580080Courtesy of SUBARU OF AMERICA, INC.
