Entertainment System: Audio: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". <Ref. to CAUTION , General Description.>

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
Remove the knee airbag module. <Ref. to REMOVAL , Knee Airbag Module.>
Remove the glove box. <Ref. to REMOVAL , Glove Box.>
Remove the center grille assembly. <Ref. to CENTER GRILLE ASSEMBLY , REMOVAL, Air Vent Grille.>
Remove the audio assembly.
1. Attach the protective tape (a) to the cover - shift lever.
2. Remove the screws and bolts, release the claws, and partially pull out the audio assembly.
  NOTE:
  - Release the claw by using a clip remover wrapped with protective tape.
  - If the antenna cable interferes with the removal operation of the side attachment bolts (for model with telematics), move the antenna cable aside before service as necessary.
3. Disconnect the connectors, and remove the audio assembly.

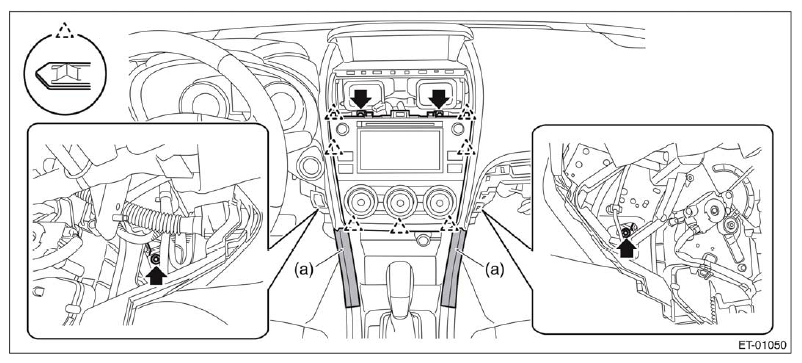

  Fig 1: Locating Audio Assembly Claws
  Courtesy of SUBARU OF AMERICA, INC.
Remove the screws, and then remove the audio bracket.

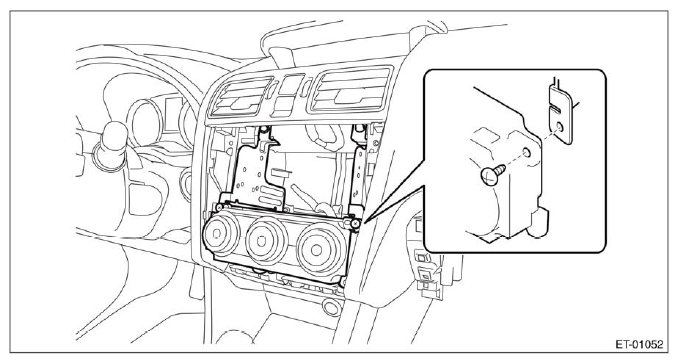

Fig 2: Locating Audio Bracket Screws
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- The model with telematics is equipped with the data communication module under the audio assembly.
- When sending the audio for repair, remove the audio bracket and heater control assembly, and install on the vehicle as shown in the figure below. <Ref. to REMOVAL , Control Panel.>

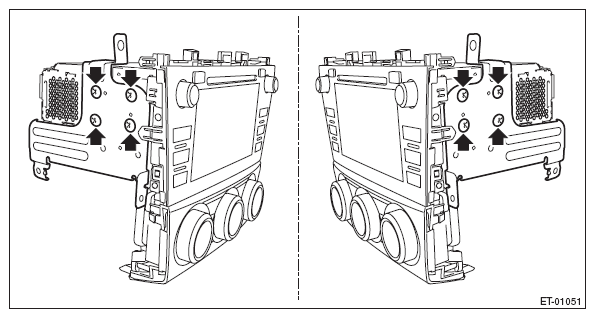

Fig 3: Installing Audio Bracket Assembly
Courtesy of SUBARU OF AMERICA, INC.
