Torque Converter Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. <Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Pull out the torque converter assembly horizontally.
    CAUTION: Do not scratch the inside of engaging parts.

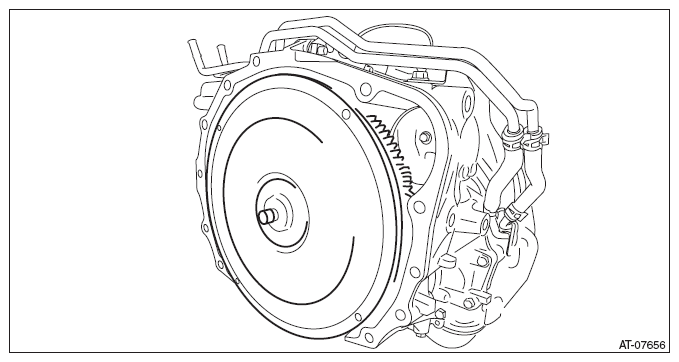

    Fig 1: Pulling Out Torque Converter Assembly
    G09482062Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the front reduction drive gear.
