Secondary Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
  1. Remove the transmission from the vehicle. <Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove the transmission cover on the transmission upper side.
    Fig 1: Removing Transmission Cover On Transmission Upper Side
    G10268148Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the secondary speed sensor harness connector.
  4. Remove the secondary speed sensor.

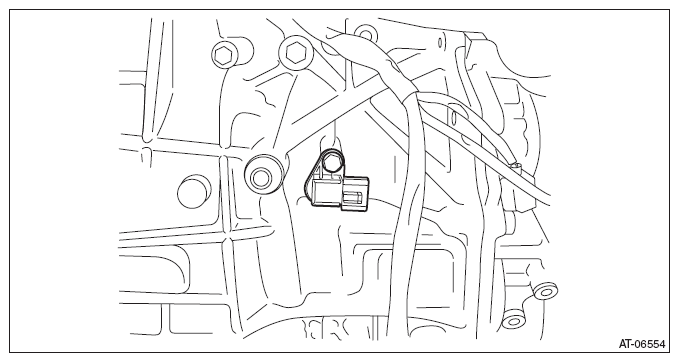

    Fig 2: Removing Secondary Speed Sensor
    G09482003Courtesy of SUBARU OF AMERICA, INC.
