Drive Plate: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. <Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Set the ST.
    NOTE: Set the ST to the drive plate referring to the illustration.

    ST 498497300 CRANKSHAFT STOPPER

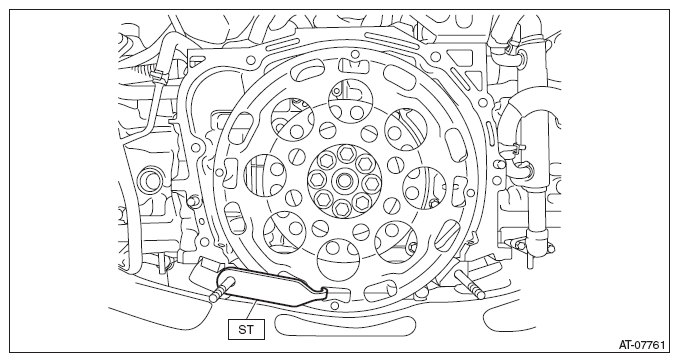

    Fig 1: Setting ST To Drive Plate
    G09482058Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the drive plate and reinforcement drive plate.
