DTC B27A5: Front Internal Antenna Open
DTC detecting condition:
When open circuit occurs in the harness between keyless access control module and front interior antenna.
Trouble symptom:
The keyless access with push button start system does not operate. (When the access key is in the front area of the passenger room)

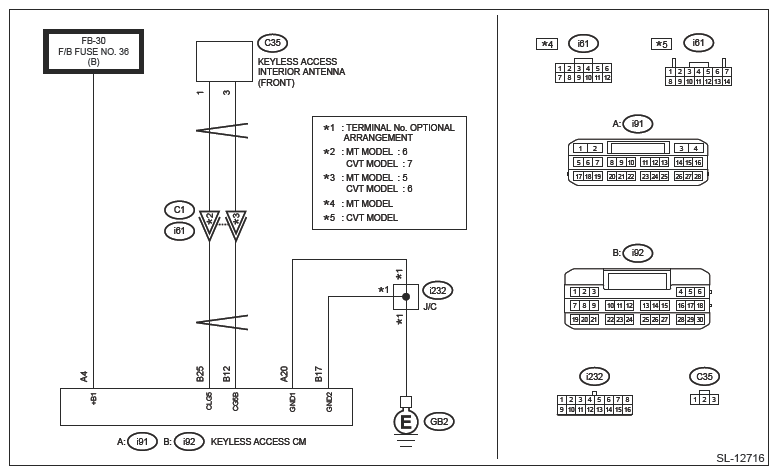

Wiring diagram:
Keyless access with push button start system Ref. to WIRING SYSTEM>KEYLESS ACCESS WITH PUSH BUTTON START SYSTEM>WIRING DIAGRAM
- For replacement procedure of keyless access control module, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume.
- Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION
- CHECK LAN SYSTEM
.
Inspect LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE
Is the check result OK?
Yes : Go to 2.
No : Perform the inspection according to the diagnosis for LAN system.
- CHECK CONNECTOR
.
- Disconnect the connector from the keyless access control module.
- Disconnect the connector from the front interior antenna.
- Check the connector.
Is the check result OK?
Yes : Go to 3.
No : Repair or replace the connector.
- CHECK POWER SUPPLY CIRCUIT
.
Using a tester, measure the voltage between the keyless access control module connector and chassis ground.
Connector & terminal
(i91) No. 4 (+) - Chassis ground (-):
Is the voltage 9.5 - 16 V?
Yes : Go to 4.
No : Check the power supply circuit.
- CHECK HARNESS (OPEN CIRCUIT)
.
Using a tester, measure the resistance between the keyless access control module connector and front interior antenna connector, and between keyless access control module connector and chassis ground.
Connector & terminal
(i92) No. 25 - (C35) No. 1:
(i92) No. 12 - (C35) No. 3:
(i92) No. 17 - Chassis ground:
(i91) No. 20 - Chassis ground:
Is the resistance less than 1 Ω?
Yes : Go to 5.
No : Repair or replace the open circuit of harness.
- CHECK HARNESS (GROUND SHORT CIRCUIT)
.
Using a tester, measure the resistance between the keyless access control module connector and chassis ground.
Connector & terminal
(i92) No. 25 - Chassis ground:
(i92) No. 12 - Chassis ground:
Is the resistance 10 kΩ or more?
Yes : Go to 6.
No : Repair or replace the short circuit of the harness.
- CHECK DTC
.
- Connect the disconnected connectors.
- Turn the ignition switch to ON.
- Using the Subaru Select Monitor, perform the clear memory of [Keyless Access with Push Button Start (Collation)]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY
- Read the DTC of [Keyless Access with Push Button Start (Collation)] using the Subaru Select Monitor. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)
Is DTC B27A5 displayed?
Yes : Go to 7.
No : Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.
NOTE:In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
- CHECK FRONT INTERIOR ANTENNA
.
- Turn the ignition switch to OFF.
- Replace the front interior antenna with the rear interior antenna. Ref. to SECURITY AND LOCKS>KEYLESS ACCESS INDOOR ANTENNA>REMOVAL
- Turn the ignition switch to ON.
- Using the Subaru Select Monitor, perform the clear memory of [Keyless Access with Push Button Start (Collation)]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY
- Read the DTC of [Keyless Access with Push Button Start (Collation)] using the Subaru Select Monitor. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)
Is DTC B27A5 displayed?
Yes : Replace the keyless access control module. Ref. to SECURITY AND LOCKS>KEYLESS ACCESS CONTROL MODULE>REMOVAL
No : Malfunction occurred in the front interior antenna.
