Preparation for Overhaul: Procedure

WARNING: This page is about a different variant/trim than selected.

Clean the transmission exterior.
Remove the torque converter assembly. <Ref. to REMOVAL , Torque Converter Assembly.>
Attach the ST on the transmission.
ST 18632AA000 STAND ASSY

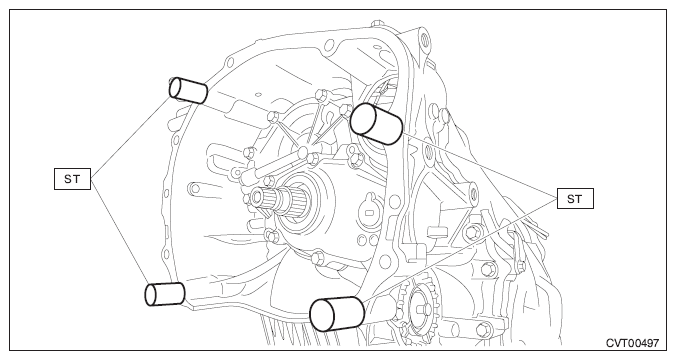

Fig 1: Attaching ST On Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission cover on the transmission upper side.
NOTE: Install using the following tightening torque.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 2: Removing Transmission Cover On Transmission Upper Side
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission assembly on end.
