Reverse Brake Assembly: Removal
- Remove the transmission assembly from the vehicle. Ref. to
REMOVAL , Automatic Transmission Assembly.
- Remove the air breather hose. Ref. to
REMOVAL , Air Breather Hose.
- Remove the control valve body. Ref. to
REMOVAL , Control Valve Body.
- Remove the transmission harness. Ref. to
REMOVAL , Transmission Harness.
- Remove the turbine speed sensor. Ref. to
REMOVAL , Turbine Speed Sensor.
- Remove the secondary speed sensor. Ref. to
REMOVAL , Secondary Speed Sensor.
- Remove the primary speed sensor. Ref. to
REMOVAL , Primary Speed Sensor.
- Remove the inhibitor switch. Ref. to
REMOVAL , Inhibitor Switch.
- Remove the extension case. Ref. to
REMOVAL , Extension Case.
- Remove the transfer clutch assembly. Ref. to
REMOVAL , Transfer Clutch.
- Remove the transfer driven gear assembly. Ref. to
REMOVAL , Transfer Driven Gear.
- Remove the parking pawl. Ref. to
REMOVAL , Parking Pawl.
- Remove the reduction driven gear assembly. Ref. to
REMOVAL , Reduction Driven Gear.
- Remove the oil pan and oil strainer. Ref. to
REMOVAL , Oil Pan and Strainer.
- Remove the transmission control device. Ref. to
REMOVAL , Transmission Control Device.
- Remove the transmission case. Ref. to
REMOVAL , Transmission Case.
- Remove the reduction drive gear. Ref. to
REMOVAL , Reduction Drive Gear.
- Remove the primary pulley, secondary pulley and variator chain. Ref. to
REMOVAL , Primary Pulley and Secondary Pulley.
- Remove the manual valve assembly.
Courtesy of SUBARU OF AMERICA, INC.

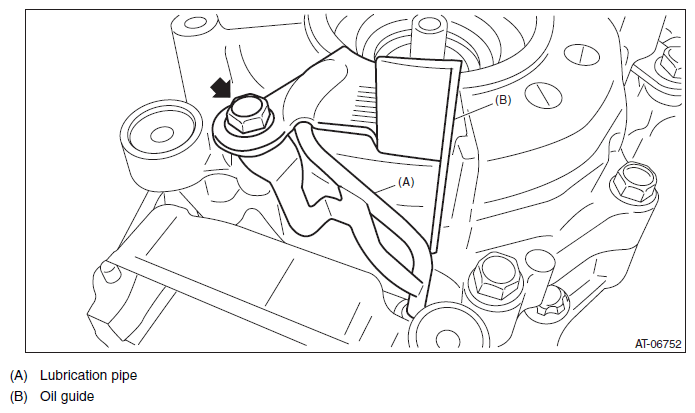

- Remove the oil guide and lubrication pipe.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the O-ring from lubrication pipe.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the reverse brake assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the O-ring.
Courtesy of SUBARU OF AMERICA, INC.
