Inhibitor Switch: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. Ref. to BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. Ref. to REMOVAL , Center Exhaust Pipe.
  5. Remove the snap pin and washer from the shifter arm.
    CAUTION: Do not apply extra overload while holding the part (A).
    Fig 1: Select Cable From Shifter Arm Dimensions
    G11255302Courtesy of SUBARU OF AMERICA, INC.

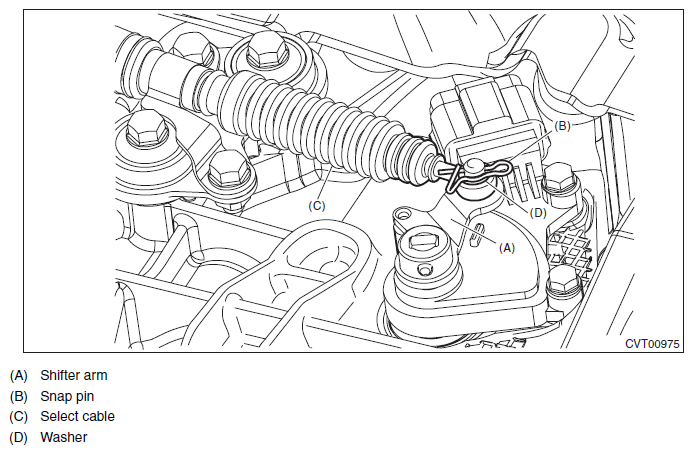

    Fig 2: Shifter Arm, Snap Pin, Select Cable And Washer
    G11568312Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spring pin and shifter arm.

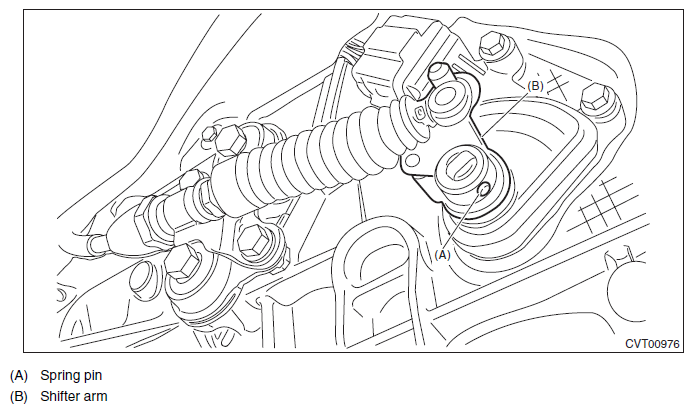

    Fig 3: Spring Pin And Shifter Arm
    G11568313Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the inhibitor harness connector from inhibitor switch.
  8. Remove the two inhibitor switch securing bolts.
    Fig 4: Locating Inhibitor Switch Securing Bolts
    G10218584Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the inhibitor switch from the transmission case.
