Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the chain cover. < Ref. to REMOVAL , Chain Cover. >
  2. Remove the timing chain assembly. < Ref. to REMOVAL , Timing Chain Assembly. >
  3. Remove the oil pan lower. < Ref. to REMOVAL , Oil Pan. >
  4. Remove the stiffener and the oil pump.

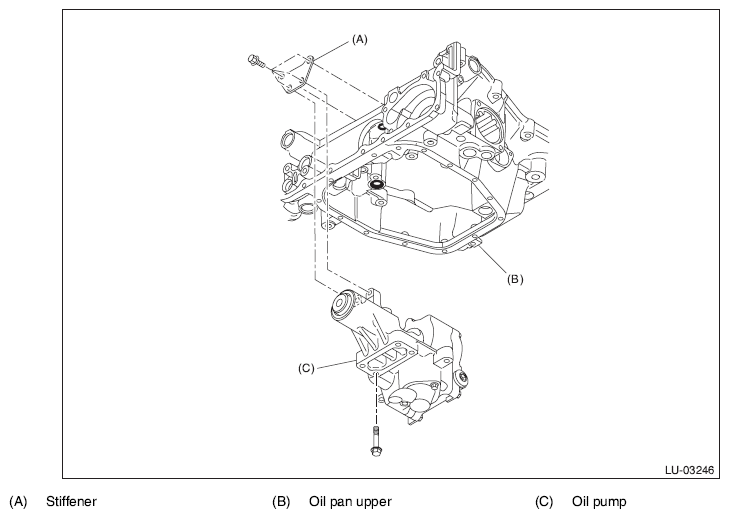

    Fig 1: Identifying Stiffener, Oil Pump And Oil Pan Upper With Bolts
    G10312170Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the strainer from the oil pump.
  6. Remove the O-ring from oil pan upper.
    Fig 2: Locating Oil Pan Upper O-Ring
    G10264236Courtesy of SUBARU OF AMERICA, INC.
