Chain Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: When replacing a single part, perform the work with the engine assembly installed to body.
  1. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Remove the radiator. < Ref. to REMOVAL , Radiator. >
    2. Remove the front exhaust pipe. < Ref. to REMOVAL , Front Exhaust Pipe. >
    3. Remove the engine mounting. < Ref. to REMOVAL , Engine Mounting. >
  2. Drain the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
  3. Remove the V-belts. < Ref. to REMOVAL , V-belt. >
  4. Remove the crank pulley. < Ref. to REMOVAL , Crank Pulley. >
  5. Remove the oil cooler pipe from the chain cover.
    Fig 1: Locating Oil Cooler Pipe Bolts
    G10263983Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the chain cover.
    NOTE: Chain cover installation bolt has three different sizes. To prevent the confusion in installation, keep these bolts on container individually.

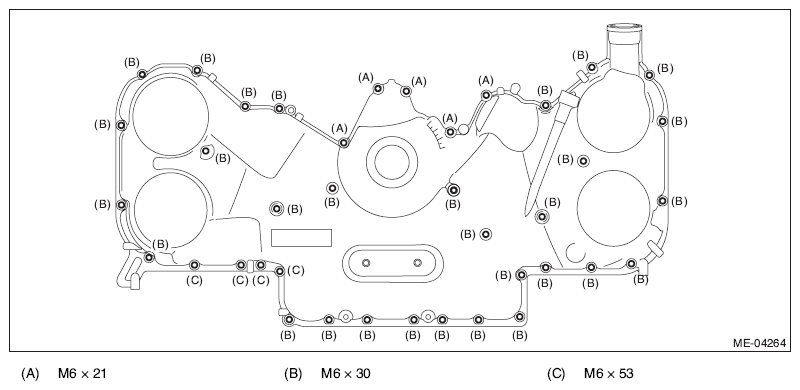

    Fig 2: Identifying Chain Cover Installation Bolts
    G10310953Courtesy of SUBARU OF AMERICA, INC.
