Chain Cover: Disassembly

  1. Remove the oil filler cap.

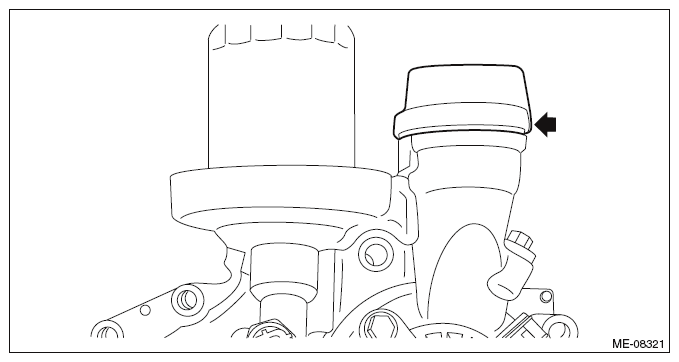

    Fig 1: Locating Oil Filler Cap
    G10262603Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the engine oil filter and the oil pump union. < Ref. to REMOVAL , Engine Oil Filter. >
  3. Remove the oil pressure switch. < Ref. to REMOVAL , Oil Pressure Switch. >
  4. Remove the engine oil temperature sensor. < Ref. to REMOVAL , Engine Oil Temperature Sensor. >
  5. Remove the oil control solenoid. < Ref. to REMOVAL , Oil Control Solenoid. >
  6. Remove the camshaft position sensor. < Ref. to REMOVAL , Camshaft Position Sensor. >
