MT Gear Shift Lever: Removal

Disconnect the ground cable from battery.
Remove the console box. < Ref. to REMOVAL , Console Box.>
Remove the gear shift knob and remove the cover - shift lever.

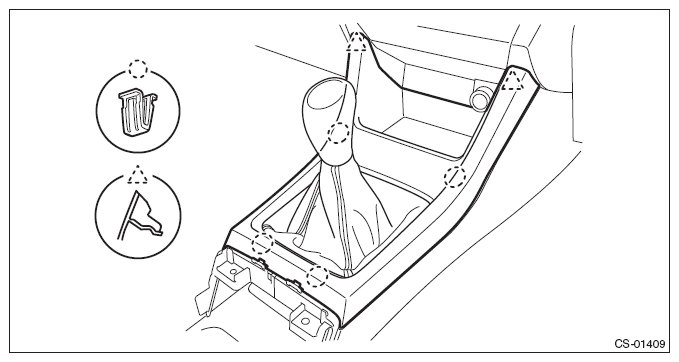

Fig 1: Identifying Gear Shift Knob Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the panel center LWR LH and RH. < Ref. to REMOVAL , Console Box.>
Remove the clamp.

Fig 2: Identifying MT Gear Shift Lever Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and insulator assembly.

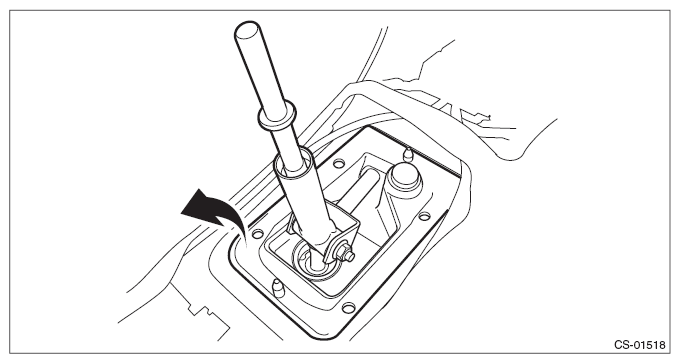

Fig 3: Identifying MT Gear Shift Lever Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clamp from the plate COMPL.

Fig 4: Locating MT Gear Shift Lever Plate COMPL Harness Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate COMPL from the vehicle body.

Fig 5: Locating MT Gear Shift Lever Plate COMPL Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 6: Identifying MT Gear Shift Lever Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the stay from the shift bracket.

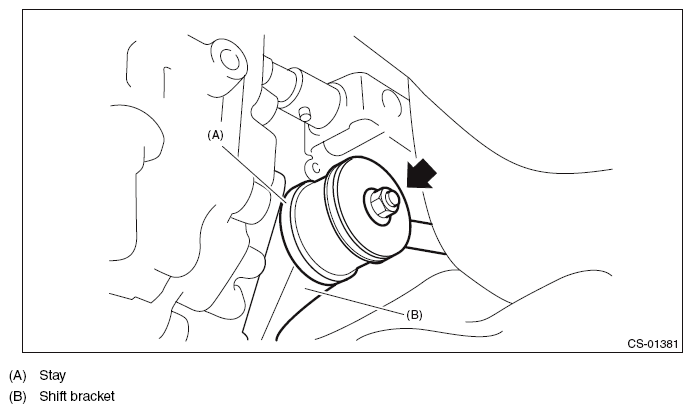

Fig 7: Locating MT Gear Shift Lever Bracket And Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from joint.

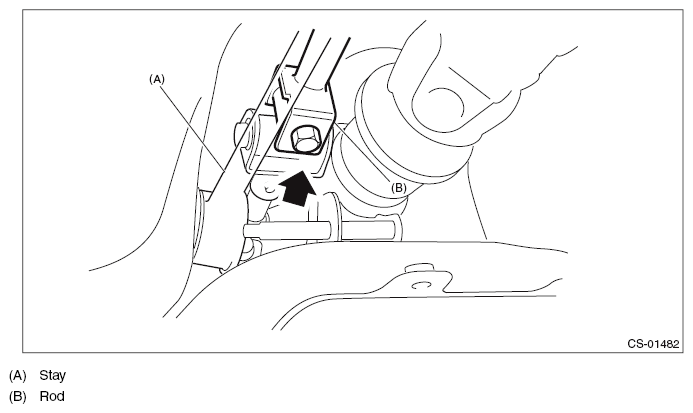

Fig 8: Locating MT Gear Shift Lever Rod And Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from the vehicle body.

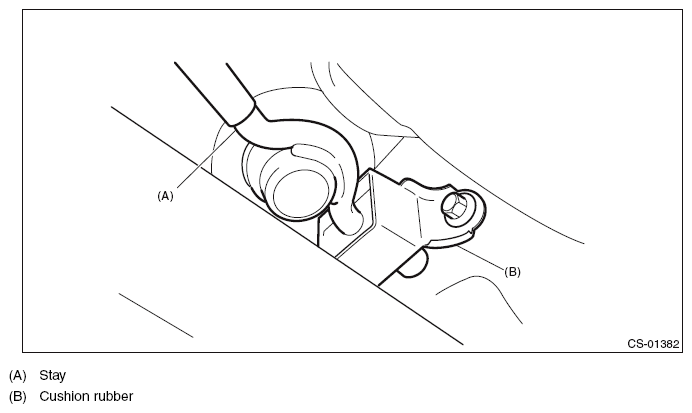

Fig 9: Identifying MT Gear Shift Lever Cushion Rubber And Stay
Courtesy of SUBARU OF AMERICA, INC.
Extract the spring pin and remove the joint.

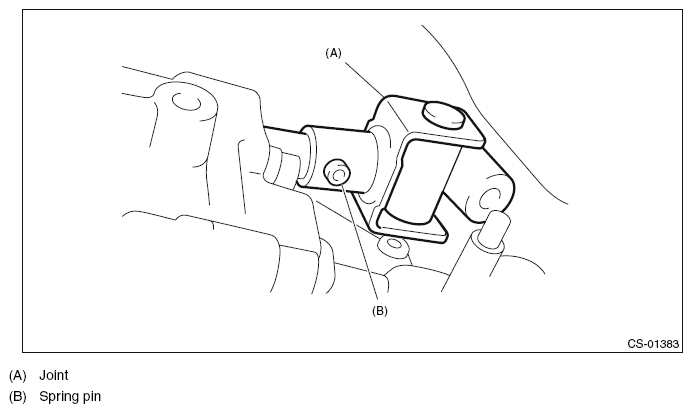

Fig 10: Identifying MT Gear Shift Lever Spring Pin And Joint
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift lever.

Fig 11: Removing MT Gear Shift Lever Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
