Console Box: Removal

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
NOTE:
- For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
- On CVT models, shift the select lever into "D" before disconnecting the battery ground cable.
Remove the console box assembly.
1. Release the claws, and then remove the boot - hand brake.

  Fig 1: Identifying Boot Hand Brake Of Console Box Assembly
  Courtesy of SUBARU OF AMERICA, INC.
2. Move the seat forward, and remove the bolts after detaching the left and right caps.
3. Remove the screws and clips, disconnect the harness connector and remove the console box assembly.

  Fig 2: Locating Screws And Clips Of Console Box Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Remove the cover - shift lever.
1. Remove the shift knob. (MT model)
2. Release the clips and claws, then pull up the cover - shift lever.

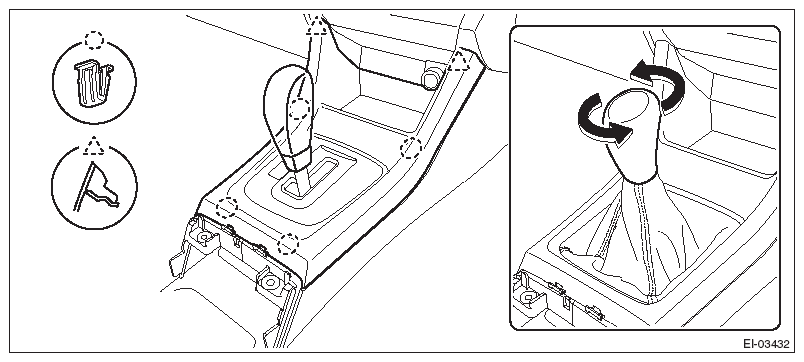

  Fig 3: Pulling Up Cover - Shift Lever
  Courtesy of SUBARU OF AMERICA, INC.
Remove the left and right panel center LWR.
1. Remove the screws and clips.
2. Release the claws, and then pull the panel center LWR to remove.

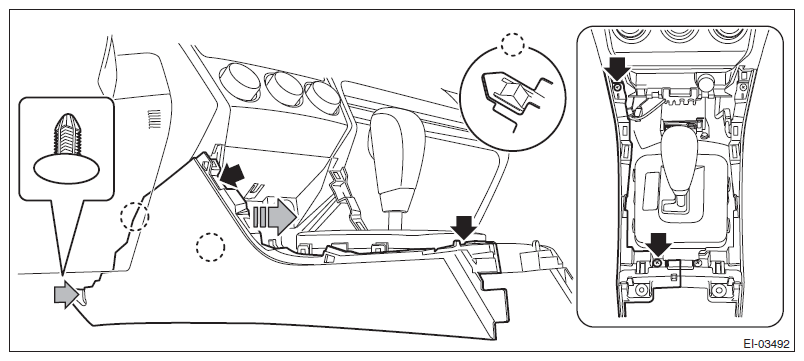

  Fig 4: Locating Claws And Panel Center LWR (Left)
  Courtesy of SUBARU OF AMERICA, INC.

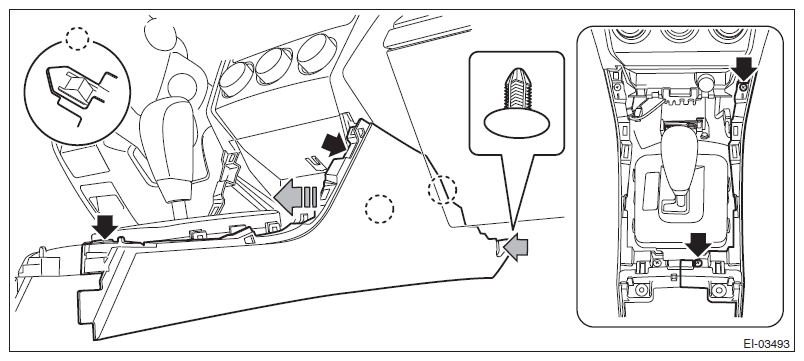

  Fig 5: Locating Claws And Panel Center LWR (Right)
  Courtesy of SUBARU OF AMERICA, INC.
