CAN Communication Circuit Check: Inspection: Wiring Diagram

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For the coupling connector, refer to "WIRING SYSTEM".

CAN communication system < Ref. to appropriate wiring diagram in SYSTEM WIRING DIAGRAM article. >

Fig 1: CAN Communication (Ground Short Inspection) - Wiring Diagram (Main-CAN)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Main wiring harness or related lines may be shorted to ground, or shorted to ground in one of the control modules.

DIAGNOSTICS PROCEDURE

Step	Check	Yes	No
1 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Using the tester, measure the resistance between terminals. Connector & terminal (B40) No. 6 - Chassis ground: (B40) No. 14 - Chassis ground:	Is the resistance 10 Ω or less?	Go to step 2 .	Currently, it is normal.
2 CHECK CONTROL MODULE. With the tester connected, disconnect control module. NOTE: Disconnect the body integrated unit at the end. Connector & terminal (B40) No. 6 - Chassis ground: (B40) No. 14 - Chassis ground:	Did the resistance change to 10 Ω or more?	Replace the control module whose resistance has changed. When the value changed at disconnecting the body integrated unit, Go to step 3 .	Repair or replace the short circuit of the main wiring harness and related lines between body integrated unit and ECM.
3 CHECK BETWEEN MAIN WIRING HARNESSES. Using the tester, measure the resistance between terminals. Connector & terminal (i171) No. 22 - Chassis ground: (i171) No. 2 - Chassis ground:	Is the resistance 10 Ω or less?	Repair or replace the short circuit of the main wiring harness and related lines between ECM and body integrated unit.	Replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. >

BODY-CAN

NOTE: For the coupling connector, refer to "WIRING SYSTEM".

CAN communication system < Ref. to appropriate wiring diagram in SYSTEM WIRING DIAGRAM article. >

Fig 1: CAN Communication (Ground Short Inspection) - Wiring Diagram (Body-CAN)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Main wiring harness or related lines may be shorted to ground, or shorted to ground in one of the control modules.

DIAGNOSTICS PROCEDURE

Step	Check	Yes	No
1 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Using the tester, measure the resistance between terminals. Connector & terminal (i188) No. 5 - Chassis ground: (i188) No. 6 - Chassis ground:	Is the resistance 10 Ω or less?	Go to step 2 .	Currently, it is normal.
2 CHECK CONTROL MODULE. With the tester connected, disconnect control module. NOTE: Disconnect the body integrated unit at the end. Connector & terminal (i188) No. 5 - Chassis ground: (i188) No. 6 - Chassis ground:	Did the resistance change to 10 Ω or more?	Replace the control module whose resistance has changed. When the value changed at disconnecting the body integrated unit, Go to step 3 .	Repair or replace the short circuit of the main wiring harness or related lines between body integrated unit and impact sensor.
3 CHECK BETWEEN MAIN WIRING HARNESSES. Using the tester, measure the resistance between terminals. Connector & terminal (B281) No. 31 - Chassis ground: (B281) No. 15 - Chassis ground:	Is the resistance 10 Ω or less?	Repair or replace the short circuit of the main wiring harness and related lines between ECM and body integrated unit.	Replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. >

NOTE: For the coupling connector, refer to "WIRING SYSTEM".

CAN communication system < Ref. to appropriate wiring diagram in SYSTEM WIRING DIAGRAM article. >

Fig 1: CAN Communication (Battery Short Inspection) - Wiring Diagram (Main-CAN)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Main wiring harness or related lines may be shorted to battery circuit, or shorted to battery circuit in one of the control modules.

DIAGNOSTICS PROCEDURE

Step	Check	Yes	No
1 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Turn the ignition switch to ON. Using the tester, measure the voltage between terminals. Connector & terminal (B40) No. 6 - Chassis ground: (B40) No. 14 - Chassis ground:	Is the voltage 5 V or less?	Currently, it is normal.	Go to step 2 .
2 CHECK CONTROL MODULE. With the tester connected, disconnect control module. NOTE: Disconnect the body integrated unit at the end. Connector & terminal (B40) No. 6 - Chassis ground: (B40) No. 14 - Chassis ground:	Did the voltage change to 5 V or less?	Replace the control module whose voltage has changed. When the value changed at disconnecting the body integrated unit, Go to step 3 .	Repair or replace the short circuit of the harness between body integrated unit and ECM.
3 CHECK BETWEEN MAIN WIRING HARNESSES. Using the tester, measure the voltage between terminals. Connector & terminal (i171) No. 22 - Chassis ground: (i171) No. 2 - Chassis ground:	Is the voltage 5 V or less?	Replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. >	Repair or replace the short circuit of the harness between ECM and body integrated unit.

BODY-CAN

NOTE: For the coupling connector, refer to "WIRING SYSTEM".

CAN communication system < Ref. to appropriate wiring diagram in SYSTEM WIRING DIAGRAM article. >

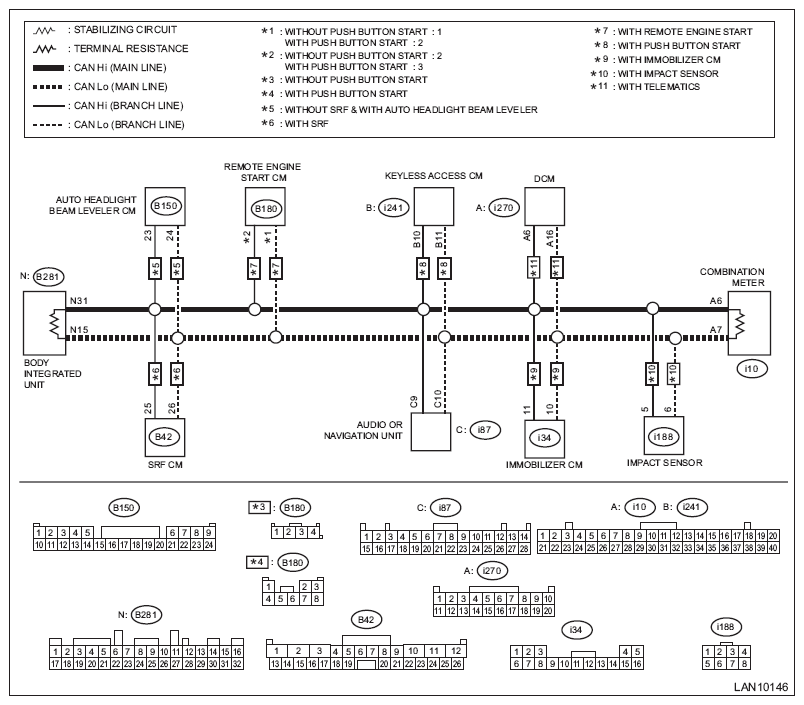

Fig 1: CAN Communication (Battery Short Inspection) - Wiring Diagram (Body-CAN)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Main wiring harness or related lines may be shorted to battery circuit, or shorted to battery circuit in one of the control modules.

DIAGNOSTICS PROCEDURE

Step	Check	Yes	No
1 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Turn the ignition switch to ON. Using the tester, measure the voltage between terminals. Connector & terminal (i188) No. 5 - Chassis ground: (i188) No. 6 - Chassis ground:	Is the voltage 5 V or less?	Currently, it is normal.	Go to step 2 .
2 CHECK CONTROL MODULE. With the tester connected, disconnect control module. NOTE: Disconnect the body integrated unit at the end. Connector & terminal (i188) No. 5 - Chassis ground: (i188) No. 6 - Chassis ground:	Did the voltage change to 5 V or less?	Replace the control module whose voltage has changed. When the value changed at disconnecting the body integrated unit, Go to step 3 .	Repair or replace the short circuit of the harness between body integrated unit and impact sensor.
3 CHECK BETWEEN MAIN WIRING HARNESSES. Using the tester, measure the voltage between terminals. Connector & terminal (B281) No. 31 - Chassis ground: (B281) No. 15 - Chassis ground:	Is the voltage 5 V or less?	Replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. >	Repair or replace the short circuit of the harness between ECM and body integrated unit.

NOTE: For the coupling connector, refer to "WIRING SYSTEM".

CAN communication system < Ref. to appropriate wiring diagram in SYSTEM WIRING DIAGRAM article. >

Fig 1: CAN Communication (53 - 61 Ω) - Wiring Diagram (Main-CAN)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When the measured resistance value is 53 - 61 Ω, main wiring harness or related lines may be shorted to ground, or shorted to power supply line, or related line may be open.

DIAGNOSTICS PROCEDURE

Step	Check	Yes	No
1 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Using the tester, measure the resistance between terminals. Connector & terminal (B40) No. 6 - Chassis ground: (B40) No. 14 - Chassis ground:	Is the resistance 10 Ω or less?	Go to step 2 .	Go to step 3 .
2 CHECK CONTROL MODULE. With the tester connected, disconnect control module. NOTE: Disconnect the body integrated unit at the end. Connector & terminal (B40) No. 6 - Chassis ground: (B40) No. 14 - Chassis ground:	Did the resistance change to 10 Ω or more?	Replace the control module whose resistance has changed. When the value changed at disconnecting the body integrated unit, replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. > Go to step 3 .	Repair or replace the short circuit of the harness between body integrated unit and ECM.
3 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Turn the ignition switch to ON. Using the tester, measure the voltage between terminals. Connector & terminal (B40) No. 6 - Chassis ground: (B40) No. 14 - Chassis ground:	Is the voltage 5 V or less?	CAN communication circuit is normal.	Go to step 4 .
4 CHECK CONTROL MODULE. With the tester connected, disconnect control module. NOTE: Disconnect the body integrated unit at the end. Connector & terminal (B40) No. 6 - Chassis ground: (B40) No. 14 - Chassis ground:	Did the voltage change to 5 V or less?	Replace the control module whose voltage has changed. When the value changed at disconnecting the body integrated unit, replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. > Go to step 5 .	Repair or replace the short circuit of the harness between body integrated unit and ECM.
5 CHECK HARNESS. Using a tester, measure the voltage between terminals and chassis ground. Connector & terminal (i171) No. 22 - Chassis ground: (i171) No. 2 - Chassis ground:	Is the voltage 5 V or less?	CAN communication circuit is normal.	Repair or replace the short circuit of the harness between ECM and body integrated unit.

BODY-CAN

NOTE: For the coupling connector, refer to "WIRING SYSTEM".

CAN communication system < Ref. to appropriate wiring diagram in SYSTEM WIRING DIAGRAM article. >

Fig 1: CAN Communication (53 - 61 Ω) - Wiring Diagram (Body-CAN)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When the measured resistance value is 53 - 61 Ω, main wiring harness or related lines may be shorted to ground, or shorted to power supply line, or related line may be open.

DIAGNOSTICS PROCEDURE

Step	Check	Yes	No
1 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Using the tester, measure the resistance between terminals. Connector & terminal (i188) No. 5 - Chassis ground: (i188) No. 6 - Chassis ground:	Is the resistance 10 Ω or less?	Go to step 2 .	Go to step 3 .
2 CHECK CONTROL MODULE. With the tester connected, disconnect control module. NOTE: Disconnect the body integrated unit at the end. Connector & terminal (i188) No. 5 - Chassis ground: (i188) No. 6 - Chassis ground:	Did the resistance change to 10 Ω or more?	Replace the control module whose resistance has changed. When the value changed at disconnecting the body integrated unit, replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. > Go to step 3 .	Repair or replace the short circuit of the harness between body integrated unit and ECM.
3 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Turn the ignition switch to ON. Using the tester, measure the voltage between terminals. Connector & terminal (i188) No. 5 - Chassis ground: (i188) No. 6 - Chassis ground:	Is the voltage 5 V or less?	CAN communication circuit is normal.	Go to step 4 .
4 CHECK CONTROL MODULE. With the tester connected, disconnect control module. NOTE: Disconnect the body integrated unit at the end. Connector & terminal (i188) No. 5 - Chassis ground: (i188) No. 6 - Chassis ground:	Did the voltage change to 5 V or less?	Replace the control module whose voltage has changed. When the value changed at disconnecting the body integrated unit, replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. > Go to step 5 .	Repair or replace the short circuit of the harness between body integrated unit and ECM.
5 CHECK HARNESS. Using a tester, measure the voltage between terminals and chassis ground. Connector & terminal (B281) No. 31 - Chassis ground: (B281) No. 15 - Chassis ground:	Is the voltage 5 V or less?	CAN communication circuit is normal.	Repair or replace the short circuit of the harness between combination meter and body integrated unit.
