Rear Brake Pad: Replacement

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the parking brake.
  2. Using the Subaru Select Monitor, go to the brake maintenance mode according to the display screen.
  3. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  4. Remove the pad - disc brake rear. <Ref. to REMOVAL , Rear Brake Pad.>
  5. Push back the piston - disc brake.
  6. Install the pad - disc brake rear. <Ref. to INSTALLATION , Rear Brake Pad.>
  7. Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  8. Using the Subaru Select Monitor, exit the brake maintenance mode according to the display screen.
  9. After the operation is completed, apply and release the parking brake five times and ensure that the brake operates normally.
    NOTE: Perform the following replacement procedure if the Subaru Select Monitor cannot be used.
    1. Remove the disc brake assembly and the pad - disc brake rear.
    2. Remove the bolt securing the lower side of the support - rear disc brake, loosen the upper side, and then raise the support - rear disc brake to secure.
    3. Secure the disc brake assembly as shown in the figure, and push back the piston using the tool.

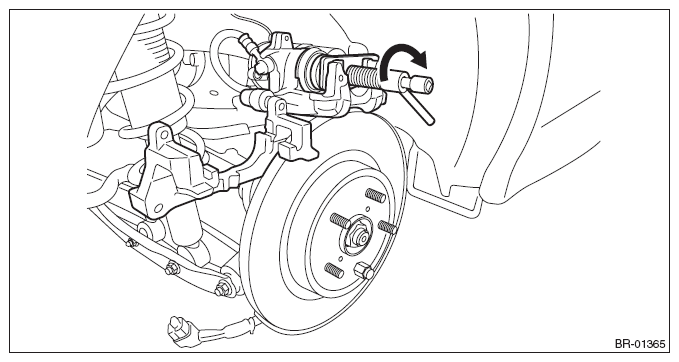

      Fig 1: Pushing Piston Using Tool
      G10276693Courtesy of SUBARU OF AMERICA, INC.
