Clearance Check

Measure the clearance between the end of the stop light switch and the stopper.
Specification:

Clearance (A) of the stop light switch: 1 mm - 2 mm (0.04 in - 0.08 in)

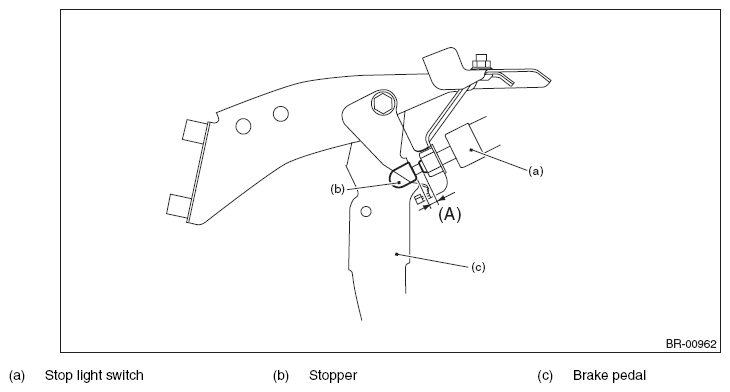

Fig 1: Identifying Clearance Between Stop Light Switch End And Stopper
Courtesy of SUBARU OF AMERICA, INC.
Adjust the position of the stop light switch if the inspection result is not within the standard value. <Ref. to ADJUSTMENT , Stop Light Switch.>
