Stop Light Switch: Adjustment

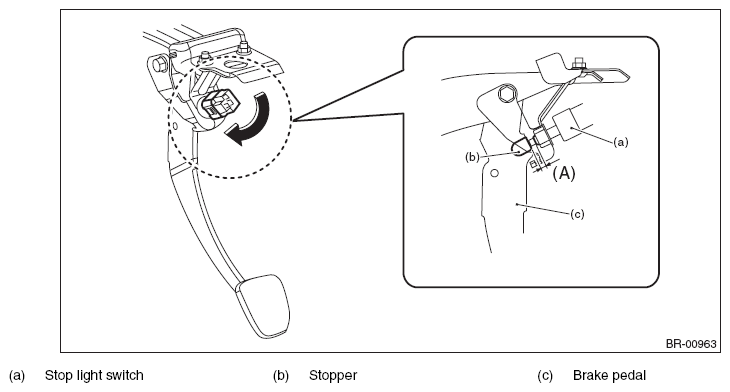

- While pulling up the brake pedal (c) toward you, insert the stop light switch (a) until it reaches the stopper (b).
- Install the stop light switch by turning it clockwise.
CAUTION:
- Turn the stop light switch clockwise when installing so that it can return backward by approximately 1 mm (0.04 in) and clearance is automatically adjusted.
- When pushing the stop light switch against the brake pedal, do not apply excessive force.
- Tighten the stop light switch with a turning torque of 3.0 N.m (0.3 kgf-m, 2.2 ft-lb) or less. (If it is hard to turn, reduce the switch pushing force and turn it again.)
- Insert until it contacts the stopper, and make sure that clearance (A) of the end of stop light switch and the stopper is 1 mm - 2 mm (0.04 in - 0.08 in).
Courtesy of SUBARU OF AMERICA, INC.
