Forced Drive
If the lid assembly - sunroof does not operate or the motor assembly is not supplied with power, move the lid assembly - sunroof using the hexagon wrench.
Preparation tool:
Hexagon wrench: width across flat 4 mm (0.16 in)
CAUTION:
After a forced operation, make sure to perform an initialize operation. <Ref. to
INITIALIZE OPERATION , OPERATION, Sunroof Control System.>
- Remove the light assembly - map. <Ref. to REMOVAL , Spot Map Light.>

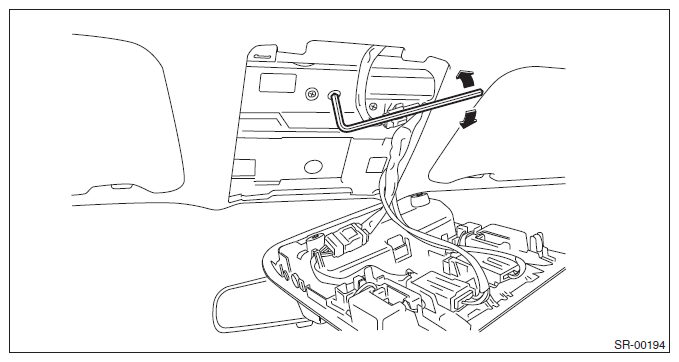

- Insert the hexagon wrench securely until it touches the motor shaft end.
- Turn the hexagon wrench, and move the lid assembly - sunroof.
- Turning right, the lid assembly - sunroof opens.
- Turning left, the lid assembly - sunroof closes.
CAUTION: Be careful not to damage the adjacent parts with the rod end when moving the lid assembly - sunroof with the hexagon wrench.
