Trunk Panel: Disassembly

  1. Removal of the trunk cover (with trunk trim)
    1. Using a clip remover, remove the 7 clips and remove the trunk cover.

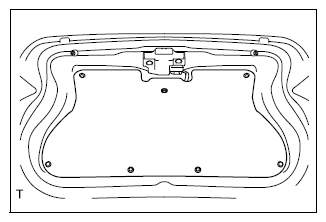

      Fig 1: Locating Trunk Cover Clips
      G10217623Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of the trunk stoppers
    1. Release the 2 tabs and remove the 2 trunk stoppers.

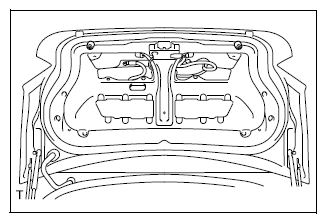

      Fig 2: Locating Trunk Stoppers Tabs
      G10217624Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of key lock trunk (Refer to INSTALLATION )
  4. Removal of trunk lock assembly (Refer to INSTALLATION )
  5. Removal of the cable assembly trunk (Refer to INSTALLATION )
  6. Removal of the trunk garnish sub-assembly outside (Refer to INSTALLATION )
  7. Removal of the trunk opener switch assembly (Refer to REMOVAL  )
  8. Removal of the rear ornament emblem (installed on the rear) (Refer to INSTALLATION )
  9. Removal of the license plate light assembly (installed on the LH side) (Refer to REMOVAL )
  10. Removal of the license plate light assembly (installed on the RH side)
    NOTE: Remove the part in the same manner as LH side.
  11. Removal of the rear spoiler (if there is a rear spoiler) (Refer to REAR SPOILER )
  12. Removal of the stay assembly trunk (Refer to REMOVAL  )
