Trunk Panel Lock Assembly: Removal

Removal of trunk cover (Refer to DISASSEMBLY )
Removal of trunk lock assembly
1. Disconnect the connector.

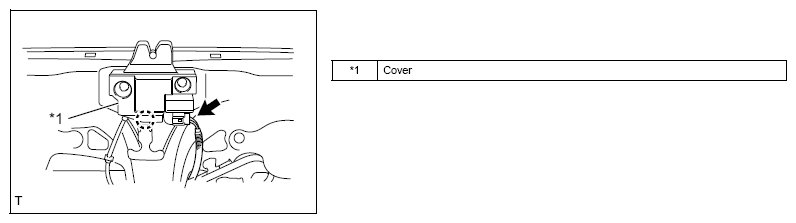

  Fig 1: Locating Trunk Lock Assembly Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the claws, and open the cover.
3. Disconnect the cable assembly trunk.

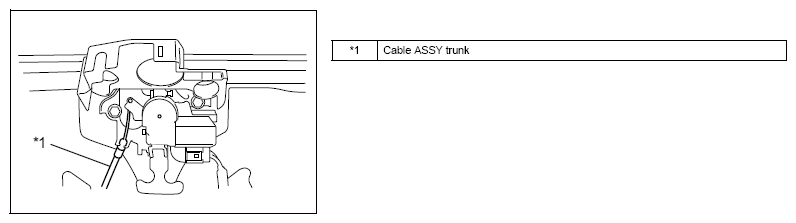

  Fig 2: Disconnecting Trunk Cable Assembly
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove two bolts and remove the trunk lock assembly.

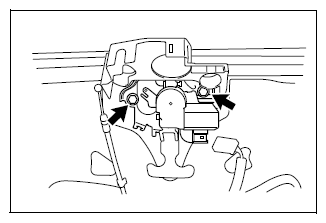

  Fig 3: Locating Trunk Lock Assembly Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Removal of KEY lock trunk
1. Remove 2 nuts and remove the KEY lock trunk.

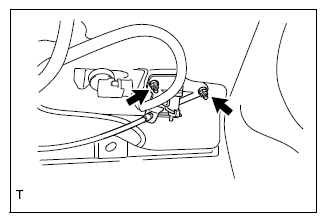

  Fig 4: Locating Key Lock Trunk Nuts
  Courtesy of SUBARU OF AMERICA, INC.

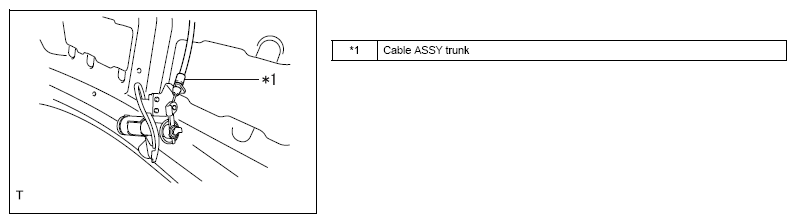

2. Disconnect the cable assembly trunk.

  Fig 5: Disconnecting Trunk Cable Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Removal of KEY lock trunk gasket
1. Remove the KEY lock trunk gasket.

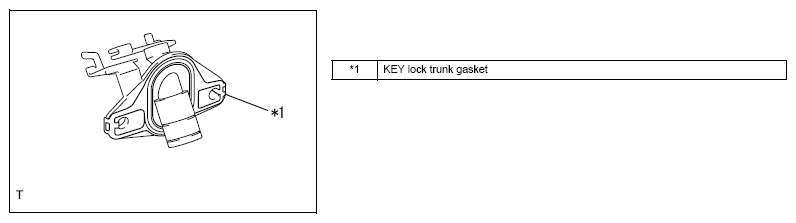

  Fig 6: Removing Key Lock Trunk Gasket
  Courtesy of SUBARU OF AMERICA, INC.

  CAUTION: To prevent water entry, replace the KEY lock trunk gasket with a new one once it is removed.
Removal of cable assembly trunk
1. Release the clamp and remove the cable assembly trunk.

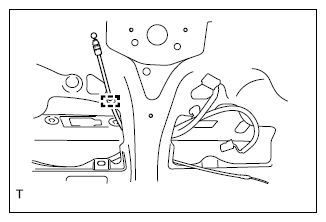

  Fig 7: Removing Trunk Cable Assembly
  Courtesy of SUBARU OF AMERICA, INC.
