Oil Pump: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the under cover. < Ref. to REMOVAL , Front Under Cover. >
  5. Drain the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
  6. Drain engine coolant. < Ref. to REPLACEMENT , REPLACEMENT, Engine Coolant. >
  7. Lower the vehicle.
  8. Remove the radiator. < Ref. to REMOVAL , Radiator. >
  9. Remove the V-belts. < Ref. to REMOVAL , V-belt. >
  10. Remove the crank pulley. < Ref. to REMOVAL , Crank Pulley. >
  11. Remove the chain cover. < Ref. to REMOVAL , Chain Cover. >
  12. Remove the timing chain. < Ref. to REMOVAL , Timing Chain Assembly. >
  13. Remove the oil pan lower. < Ref. to REMOVAL , Oil Pan. >
  14. Remove the stiffener and the oil pump.

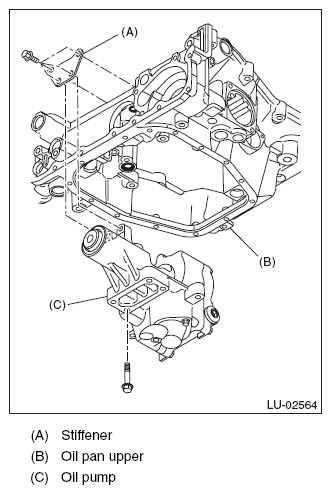

    Fig 1: Identifying Stiffener, Oil Pan Upper And Oil Pump
    G08544490Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the strainer from the oil pump.
  16. Remove the O-rings from oil pan upper.

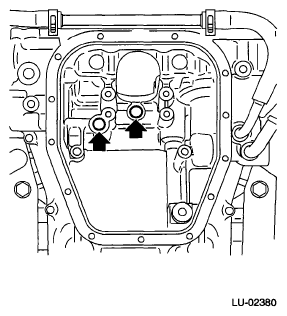

    Fig 2: Identifying Oil Pan Upper O-Rings
    G05668068Courtesy of SUBARU OF AMERICA, INC.
