Chain Cover: Removal

  1. Lift up the vehicle.
  2. Remove the under cover. < Refer to REMOVAL , Front Under Cover. >
  3. Drain the engine oil. < Refer to REPLACEMENT , Engine Oil. >
  4. Drain engine coolant. < Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  5. Lower the vehicle.
  6. Change the bolt mounting position from (A) to (B), then completely open the front hood.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    Fig 1: Identifying Front Hood Bolt Mounting Position
    G05031199Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air intake duct. < Refer to REMOVAL , Air Intake Duct. >
  8. Remove the V-belts. < Refer to REMOVAL , V-belt. >
  9. Remove the crank pulley. < Refer to REMOVAL , Crank Pulley. >
  10. Remove the front upper cover.
    Fig 2: Identifying Front Upper Cover
    G05667749Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the reservoir tank. < Refer to REMOVAL , Reservoir Tank. >
  12. Remove the radiator main fan & fan motor and radiator sub fan & fan motor. < Refer to REMOVAL , Radiator Main Fan and Fan Motor. >
  13. Remove the radiator. < Refer to REMOVAL , Radiator. >
  14. Remove the oil cooler pipe from the chain cover.
    Fig 3: Identifying Oil Cooler Pipe Mounting Bolts
    G06649795Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the chain cover.
    NOTE:

    Chain cover installation bolt has three different sizes. To prevent the confusion in installation, keep these bolts on container individually.

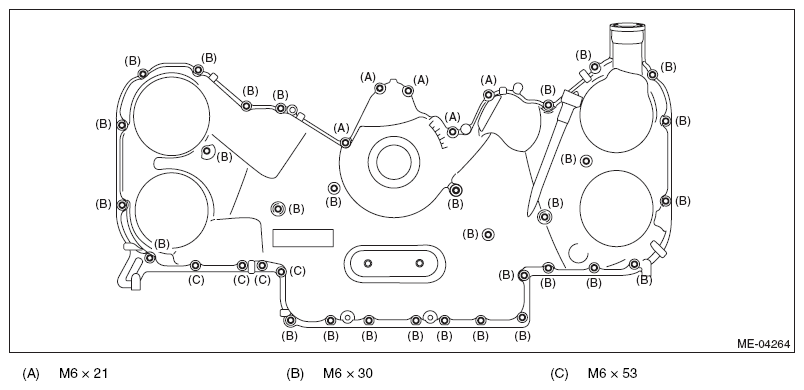

    Fig 4: Identifying Chain Cover Installation Bolts
    G08544211Courtesy of SUBARU OF AMERICA, INC.
