Transmission Case: Removal

  1. Remove the manual transmission assembly from the vehicle. Refer to REMOVAL .
  2. Remove the clutch release lever. Refer to REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Refer to REMOVAL .
  4. Remove the bearing mounting bolt.

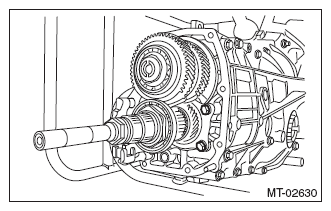

    Fig 1: Identifying Transmission Case Bearing Mounting Bolt
    G08582019Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the main shaft rear plate.

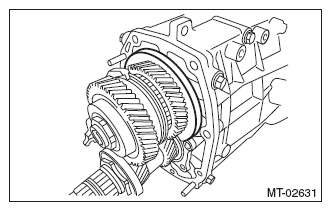

    Fig 2: Identifying Main Shaft Rear Plate
    G08582020Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the coupling bolts and nuts, and separate the transmission case into the right and left case.
    Fig 3: Identifying Transmission Case Coupling Bolts And Nuts
    G08582021Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the drive pinion shaft assembly from the left side of the transmission case.
    NOTE: Use a hammer handle, etc. to remove if too tight.

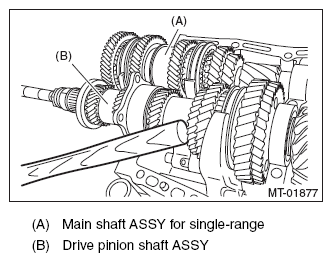

    Fig 4: Removing Drive Pinion Shaft Assembly From Left Side Of Transmission Case
    G08582022Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the main shaft assembly for single-range.
  9. Remove the front differential assembly.
    Fig 5: Removing Front Differential Assembly
    G08318991Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the differential side retainers and bearing outer races on the left and right side. Refer to REMOVAL .
    NOTE: Do not confuse the right and left roller bearing outer races.
  11. Remove the reverse idler gear. Refer to REMOVAL .
  12. Remove the shifter fork and rod. Refer to REMOVAL .
  13. Remove the front oil guide.
    Fig 6: Identifying Front Oil Guide
    G08582024Courtesy of SUBARU OF AMERICA, INC.
