Reduction Drive Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the reduction drive gear to secondary pulley.

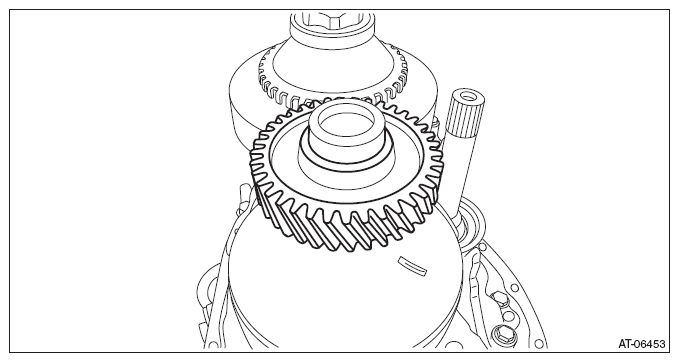

    Fig 1: Identifying Reduction Drive Gear
    G08317982Courtesy of SUBARU OF AMERICA, INC.
  2. Select the reduction drive gear shim. Refer to ADJUSTMENT .
  3. Remove the transmission case, and install the selected shim.
  4. Install the transmission case. Refer to INSTALLATION .
  5. Install the transmission control device. Refer to INSTALLATION .
  6. Install the oil strainer and oil pan. Refer to INSTALLATION .
  7. Install the reduction driven gear assembly. Refer to INSTALLATION .
  8. Install the parking pawl. Refer to INSTALLATION .
  9. Install the transfer driven gear assembly. Refer to INSTALLATION .
  10. Install the transfer clutch assembly. Refer to INSTALLATION .
  11. Install the extension case. Refer to INSTALLATION .
  12. Install the inhibitor switch. Refer to INSTALLATION .
  13. Install the secondary speed sensor. Refer to INSTALLATION .
  14. Install the primary speed sensor. Refer to INSTALLATION .
  15. Install the turbine speed sensor. Refer to INSTALLATION .
  16. Install the transmission harness. Refer to INSTALLATION .
  17. Install the control valve body. Refer to INSTALLATION .
  18. Install the air breather hose. Refer to INSTALLATION .
  19. Install the transmission assembly to the vehicle. Refer to INSTALLATION .
