Reduction Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the reduction driven gear assembly.

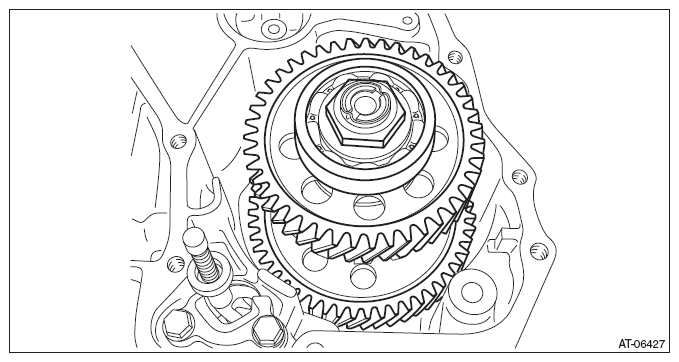

    Fig 1: Identifying Reduction Driven Gear Assembly
    G08317930Courtesy of SUBARU OF AMERICA, INC.
  2. Select the transfer drive gear shim. Refer to ADJUSTMENT .
  3. Install the parking pawl. Refer to INSTALLATION .
  4. Attach the selected transfer drive gear shim to extension case with vaseline.
  5. Install the transfer driven gear assembly. Refer to INSTALLATION .
  6. Install the transfer clutch assembly. Refer to INSTALLATION .
  7. Install the extension case. Refer to INSTALLATION .
  8. Install the transmission assembly to the vehicle. Refer to INSTALLATION .
