Steering column ASSY: Installation

  1. Confirm that the front tires are in the straight-ahead position.
  2. Install the steering column ASSY.
    1. Install the steering column ASSY into the instrument panel reinforcement ASSY with the two nuts and new bolts.

      Standard value: T=40N.m {408kgf.cm} {29.5ft.lbf}

      CAUTION: Be careful not to pinch the wiring harness between the body.
    2. Connect the two connectors to the power steering computer ASSY.

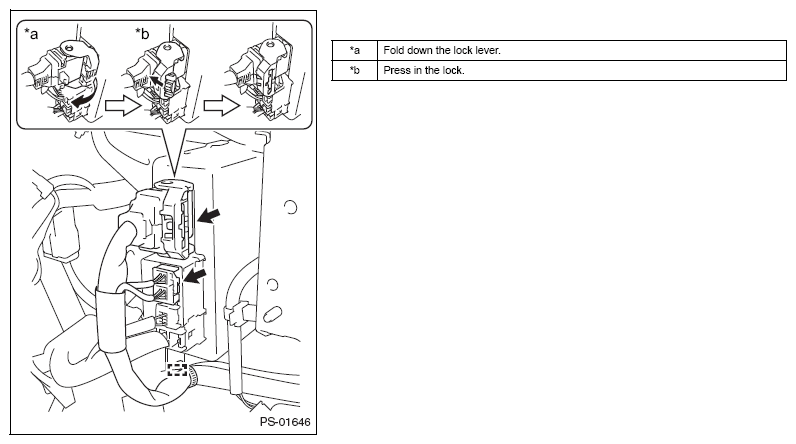

      Fig 1: Locating Power Steering Computer Assembly Connectors
      G08555431Courtesy of SUBARU OF AMERICA, INC.
    3. Install the wiring harness clamp onto the power steering computer ASSY.
  3. Install the steering intermediate shaft ASSY No. 2.
    1. Pass the steering intermediate shaft ASSY No. 2 through the hole in the body from the vehicle interior side.
    2. Line up the alignment marks and connect the steering intermediate shaft ASSY No. 2 to the steering gear ASSY.
      Fig 2: Aligning the Marks And Connecting Intermediate Shaft Assy No. 2 To Steering Gear Assy
      G08555432Courtesy of SUBARU OF AMERICA, INC.
    3. Attach a new bolt.

      Standard value: T=35N.m {357kgf.cm} {26ft.lbf}

    4. Line up the alignment marks and connect the steering intermediate shaft ASSY No. 2 to the steering column ASSY.
      Fig 3: Aligning The Marks And Connecting Intermediate Shaft Assy No. 2 To Steering Column Assy
      G08555433Courtesy of SUBARU OF AMERICA, INC.
    5. Attach a new bolt.

      Standard value: T=35N.m {357kgf.cm} {25.8ft.lbf}

    6. Engage the four tabs and install the dust shield to the vehicle.
  4. Install the turn signal switch ASSY W/Steering roll connector.
    1. Install the turn signal switch ASSY W/Steering roll connector onto the steering column ASSY when the clamp is loose.
    2. Engage the tabs on the turn signal switch ASSY W/Steering roll connector with the steering column ASSY and tighten the clamp.
    3. Connect each connector to the turn signal switch ASSY W/Steering roll connector.
  5. Install the steering column cover UPR.
    1. Engage the two tabs and install the steering column cover UPR.
  6. Install the steering column cover LWR.
    1. Engage the six tabs and install the steering column cover LWR.
    2. Install the two screws into the steering column cover LWR.
  7. Install the steering column cover support (with smart entry)
    1. Engage the 4 tabs and install the steering column cover support.
  8. Install the instrument panel meter ornament UPR (Refer to INSTALLATION )
  9. Install the meter hood SUB-ASSY. (Refer to INSTALLATION )
  10. Install the instrument cluster finish panel SUB-ASSY CTR. (Refer to INSTALLATION )
  11. Steering roll connector centering (Refer to INSPECTION )
  12. Install the instrument panel under cover SUB-ASSY No. 1 (Refer to INSTALLATION )
  13. Installation of instrument side panel RH (Refer to INSTALLATION )
  14. Install the steering wheel ASSY (Refer to INSTALLATION  )
  15. Connection of the battery ground terminal

    Standard value: T=6.0N.m {61kgf.cm} {4.43ft.lbf}

  16. Settings when connecting/disconnecting battery terminals (Refer to WORKING PRECAUTIONS AND NOTES )
  17. Settings during parts replacement and installation/removal (Refer to WORK SUPPORT )
  18. Inspect the airbag warning light. (Refer to AIRBAG WARNING LIGHT ILLUMINATION PATTERN )
  19. VSC (VDC) sensor mid point setting (Refer to WORK SUPPORT )
