Transfer Reduction Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the reduction driven gear assembly.

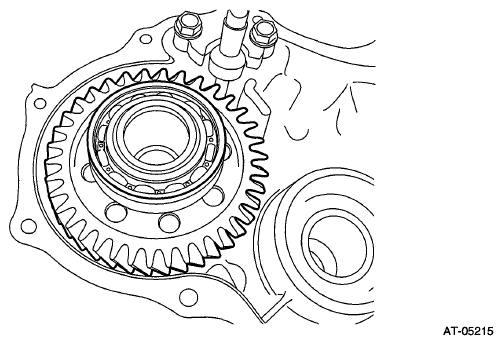

    Fig 1: Identifying Transfer Reduction Driven Gear Assembly (View 2 Of 2)
    G06654532Courtesy of SUBARU OF AMERICA, INC.
  2. Select shims. Refer to , ADJUSTMENT , Transfer Reduction Driven Gear.
  3. Mount the selected shim onto ball bearing.
  4. Install the transfer clutch assembly. Refer to , INSTALLATION , Transfer Clutch.
  5. Install the extension case. Refer to , INSTALLATION , Extension Case.
  6. Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
