Select Lever: Assembly

Clean all the parts before assembly.
Apply NIGTIGHT LYW No. 2 grease or equivalent to each part. < Ref. to AT SELECT LEVER , COMPONENT, General Description. >
Assemble in the reverse order of disassembly.
NOTE:
- Set the select lever to "D" range (normal mode position) when installing the guide plate and be careful of the following.
- Insert the protrusion (B) of the guide plate into the hole on shift lock solenoid unit (A).
- Insert link (D) of the shift lock release into link (C) of the shift lock solenoid unit.

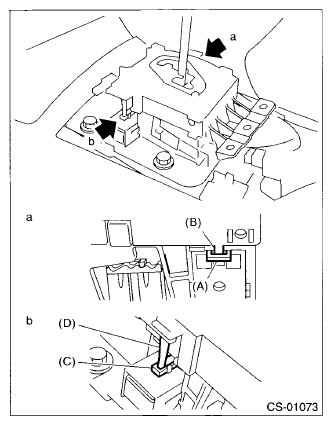

  Fig 1: Identifying Protrusion, Shift Lock Solenoid Unit And Shift Lock Link
  Courtesy of SUBARU OF AMERICA, INC.
- Connect the switch and solenoid terminals to the connector.

  Fig 2: Identifying Switch And Solenoid Connector Terminals
  Courtesy of SUBARU OF AMERICA, INC.
After completing installation, shift the select lever from "P" range to "D" range, then check whether the indicator and select lever matches, whether the pointer and position mark matches and whether the operating force occurs.
