At Select Lever

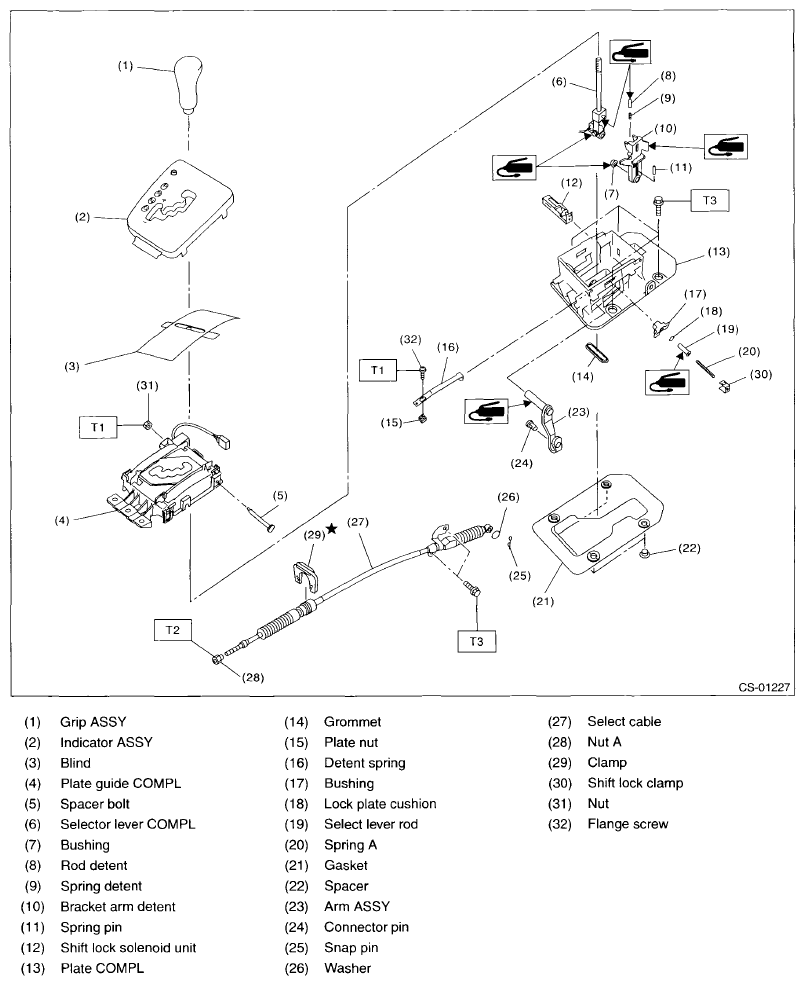

Fig 1: Identifying Control System Components (At Select Lever)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2.2 (0.2, 1.6)

T2: 7.5 (0.8, 5.5)

T3: 18 (1.8, 13.3)
