MT Gear Shift Lever: Assembly

NOTE:

Clean all the parts before assembly.
Apply NIGTIGHT LYW No. 2 grease or equivalent to each part. < Ref. to 5MT GEAR SHIFT LEVER , COMPONENT, General Description. >

Mount the bushing and cushion rubber to the stay.

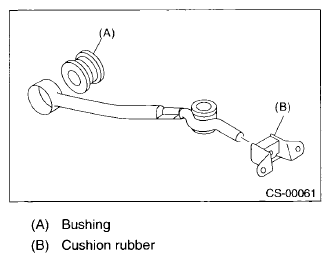

Fig 1: Identifying Bushing And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Install the bushing and spacer to boss.

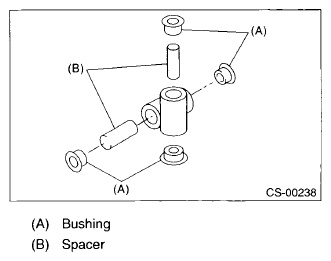

Fig 2: Identifying Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.
Using new self-locking nuts, install the boss to the joint.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

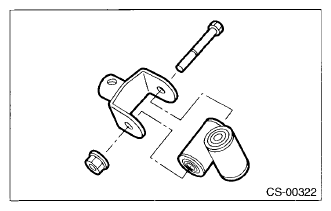

Fig 3: Identifying Boss And Joint
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring to gear shift lever and install the bushing.
NOTE: Apply grease to the bushing.

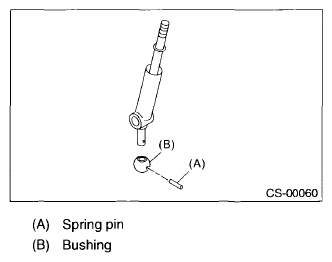

Fig 4: Identifying Spring Pin And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Apply grease to the bushing and O-ring, and then install to gear shift lever.

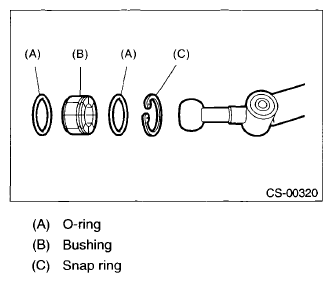

Fig 5: Identifying O-Ring, Bushing And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply sufficient grease into boss, and then install the gear shift lever to the stay.

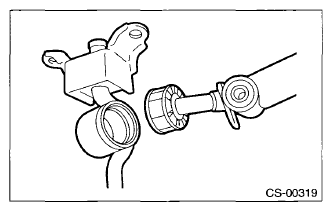

Fig 6: Identifying Gear Shift Lever And Boss
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap ring.

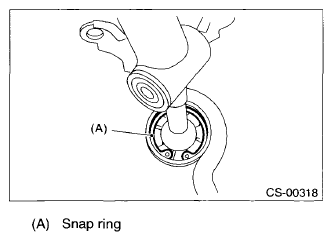

Fig 7: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever and rod into boot hole.
Install the rod.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

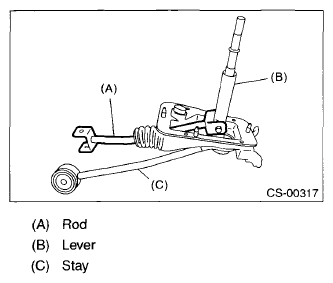

Fig 8: Identifying Rod, Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Install a new lock wire.

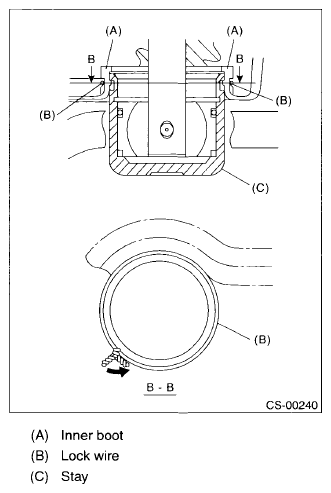

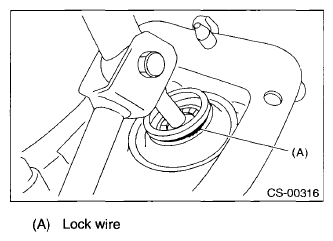

Fig 9: Identifying Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
