General Description
>>
Components With Torque Specifications
>>
5MT Gear Shift Lever
5MT Gear Shift Lever

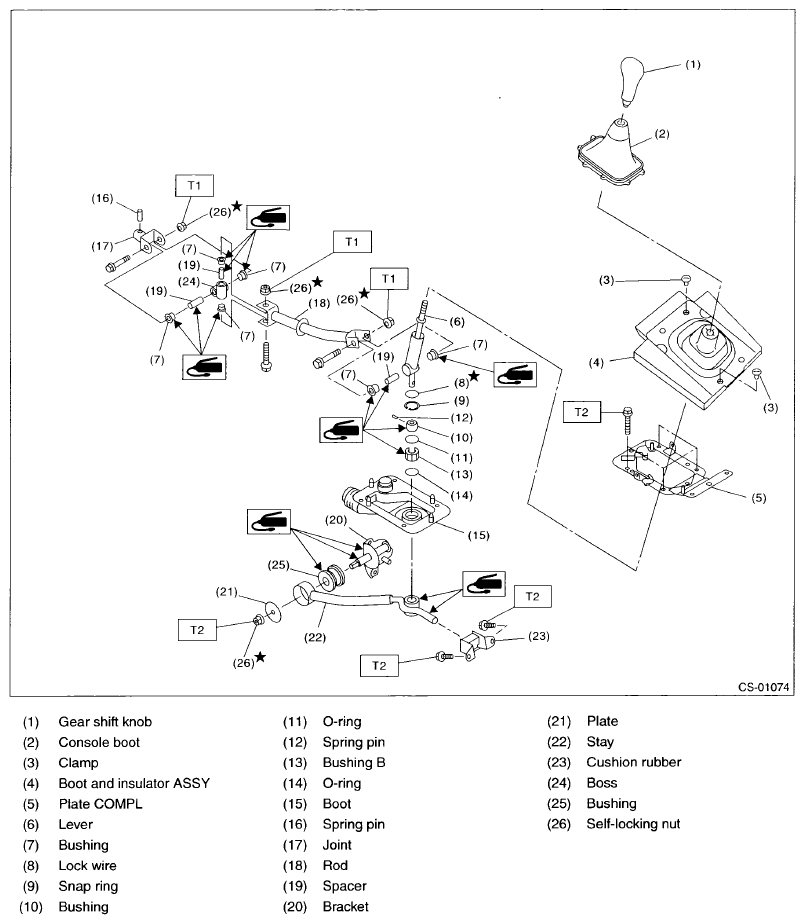

Fig 1: Identifying Control System Components (5MT Gear Shift Lever)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 12 (1.2, 8.9)
T2: 18 (1.8, 13.3)
