Transmission Control Device: Installation

Install the detent spring to the transmission case.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Fig 1: Identifying Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
Insert the range select lever, and tighten the bolts.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Fig 2: Identifying Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Insert the manual plate and parking rod.

Fig 3: Identifying Manual Plate And Parking Rod
Courtesy of SUBARU OF AMERICA, INC.
Insert a new spring pin into the manual plate.

Fig 4: Identifying Straight Pin Of Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan and the control valve assembly. Ref. to INSTALLATION in Control Valve Body.
Turn over the transmission case to its original position.
Install the pitching stopper bracket.
Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)
install and adjust the inhibitor switch. Ref. to INHIBITOR SWITCH .
Insert the inhibitor switch connector and transmission harness connector onto the stay.

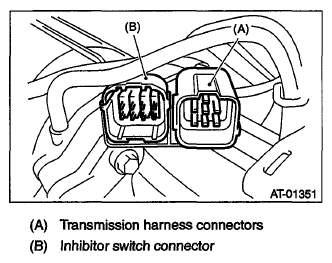

Fig 5: Identifying Inhibitor Switch Connector And Transmission Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air breather hose. Ref. to INSTALLATION in Air Breather Hose.
Insert the input shaft while rotating it lightly by hand, and then check the amount of protrusion.
Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

Fig 6: Identifying Input Shaft Normal Protrusion A
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. Ref. to INSTALLATION in Torque Converter Clutch Assembly.
Install the transmission assembly to the vehicle. Ref. to INSTALLATION in Automatic Transmission Assembly.
