Control Valve Body: Installation

Check the control valve body for dust and other foreign matter.
Temporarily attach the control valve body to the transmission.
Install the oil cooler pipe.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 1: Identifying Oil Cooler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts equally.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

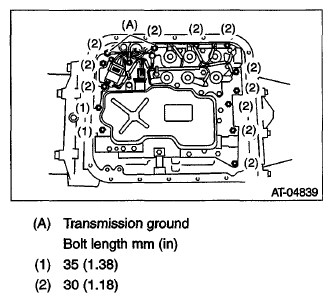

Fig 2: Identifying Control Valve Body Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Connect the control valve connector.

Fig 3: Identifying Control Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at the specified position of the oil pan.

Fig 4: Identifying Magnet
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

Fig 5: Applying Proper Amount Of Liquid Gasket To Entire Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Fill the 3 holes aside from the bolt holes in the transmission case, with liquid gasket.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

Fig 6: Locating Liquid Gasket Applying Locations On Bolt Holes
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Fill ATF from the oil charge pipe. Ref. to AUTOMATIC TRANSMISSION FLUID .
Bleed the air of control valve. Ref. to PROCEDURE in Air Bleeding of Control Valve.
Check the ATF level. Ref. to INSPECTION in Automatic Transmission Fluid.
Perform learning control promotion. Ref. to FACILITATION OF LEARNING CONTROL in OPERATION, Subaru Select Monitor.
