Universal Joint: Installation

WARNING: This page is about a different variant/trim than selected.

Align the cutout portion at serrated section of the column shaft and yoke, then install the universal joint into column shaft.

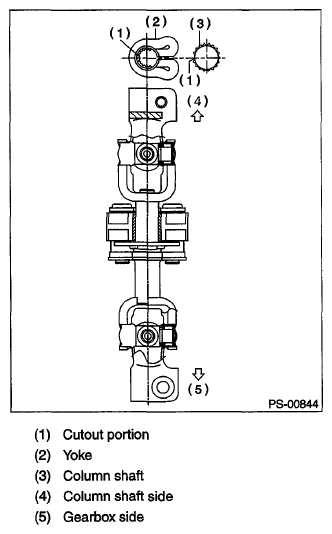

Fig 1: Position Of Installing Universal Joint Into Column Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the universal joint to the serrations of gearbox assembly by matching alignment marks.
Tighten the bolts.
Tightening torque: 24 N.m (2.4 kgf-m, 17.7 ft-lb)

CAUTION: Excessively large tightening torque of universal joint bolts may lead to heavy steering wheel operation.
Clearance between coupling of universal joint and turbo cover: 15 mm (0.59 in) or more
Align the center position of the roll connector. Ref. to ADJUSTMENT , Roll Connector.
Install the steering wheel. Ref. to INSTALLATION , STEERING WHEEL.
