Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Install the oil pump to bracket.
Tightening torque: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 1: Locating Oil Pump Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

36 N-m (3.7 kgf-m, 26.6 ft-lb) (non-turbo model)

48 N-m (4.9 kgf-m, 35.4 ft-lb) (turbo model)

Fig 2: Locating Oil Pump Bolt
Courtesy of SUBARU OF AMERICA, INC.
Attach the installation bolts of the power steering pump bracket.
Tightening torque: Ref. to OIL PUMP , COMPONENT, General Description.

Fig 3: Locating Power Steering Pump Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
After installing the oil pump, fill the oil pump with fluid while rotating the pulley by hand and bleed the air from the oil pump.
CAUTION: Always fill the oil pump with the fluid to prevent abnormal noise and seizure of the oil pump.
Connect the pressure hose and suction hose.
Tightening torque: Eye bolt 40 N-m (4.1 kgf-m, 29.5 ft-lb)

CAUTION: Be careful when installing; If the hose is twisted it may come into contact with other parts.
- Non-turbo model

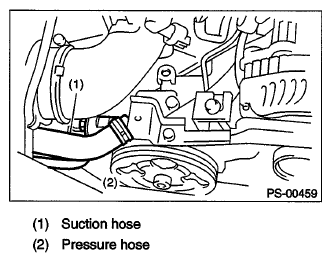

  Fig 4: Identifying Pressure And Suction Hose (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

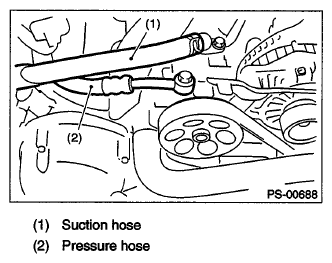

  Fig 5: Identifying Pressure And Suction Hose (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Connect the power steering pump switch to the connector.
Install the V-belts (front side belt). Ref. to FRONT SIDE BELT , INSTALLATION, V-belt. Ref. to FRONT SIDE BELT , INSTALLATION, V-belt.
Connect the ground cable to battery.
Fill with the specified power steering fluid. Ref. to POWER STEERING FLUID .
CAUTION: Never start the engine before filling with fluid; otherwise the vane pump may become seized.
