Oil Pump

WARNING: This page is about a different variant/trim than selected.

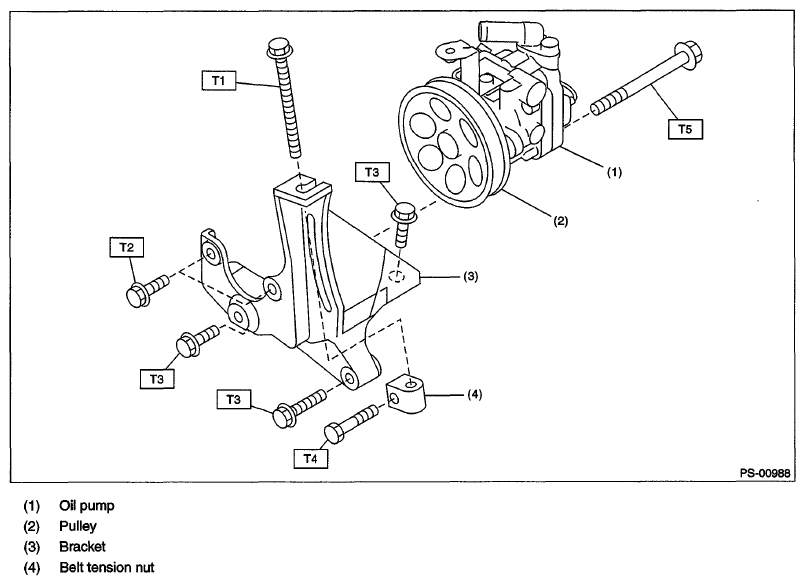

Fig 1: Exploded View Of Oil Pump

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 16 (1.6, 11.8)

T3: 22 (2.2, 16.2)

T4: 25 (2.5, 18.4)

T5: 36 (3.7, 26.6) (non-turbo model)

48 (4.9, 35.4) (turbo model)
