Reduction Drive Gear: Installation

  1. Install the reduction drive gear assembly.
    NOTE: Press-fit it to the bottom of bearing shoulder completely.

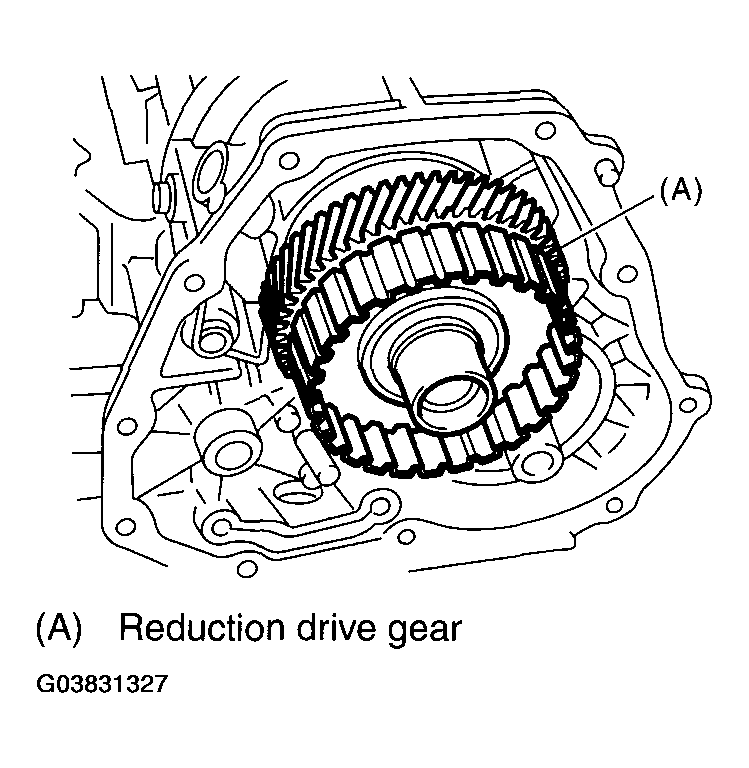

    Fig 1: Installing Reduction Drive Gear Assembly
    G03831327Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction driven gear. < Ref. to , INSTALLATION , Reduction Driven Gear. >
  3. Combine the transmission case with extension case, and then install the rear vehicle speed sensor. < Ref. to , INSTALLATION , Extension Case. >
  4. Install the transmission assembly into vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
