Roll Connector: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect the ground cable from the battery, and wait for at least 20 seconds before starting work.
  3. Remove instrument panel lower cover.
  4. Disconnect airbag connector (AB3) and (AB8) below steering column.

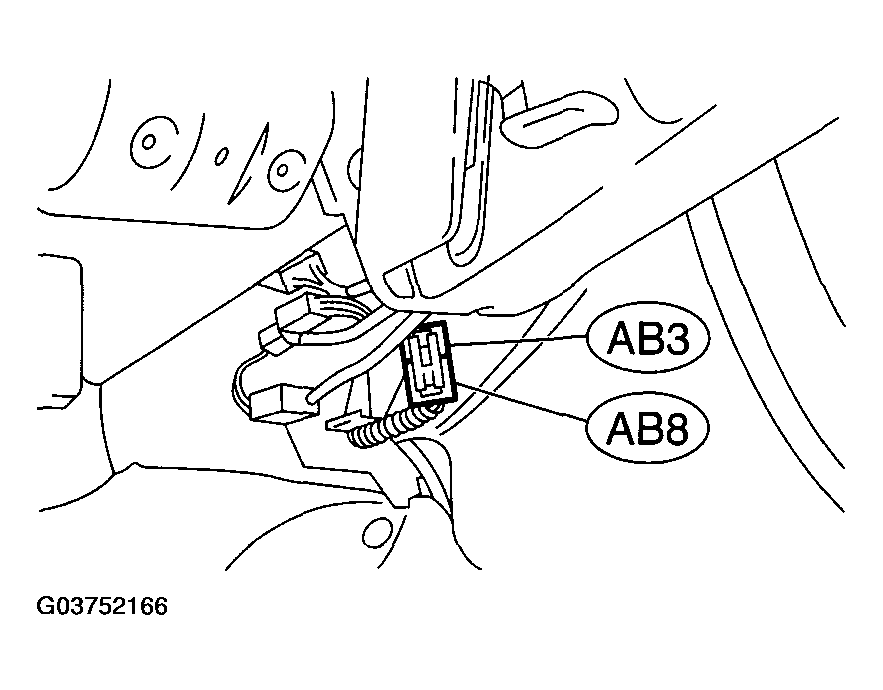

    Fig 1: Disconnecting Airbag Connector (AB3) And (AB8) Below Steering Column
    G03752166Courtesy of SUBARU OF AMERICA, INC.
  5. Remove driver's airbag module. < Ref. to , DRIVER'S AIRBAG MODULE . >
  6. Remove steering wheel. < Ref. to REMOVAL , Steering Wheel . >
  7. Remove steering column cover.
  8. Remove screws, and then remove roll connector.

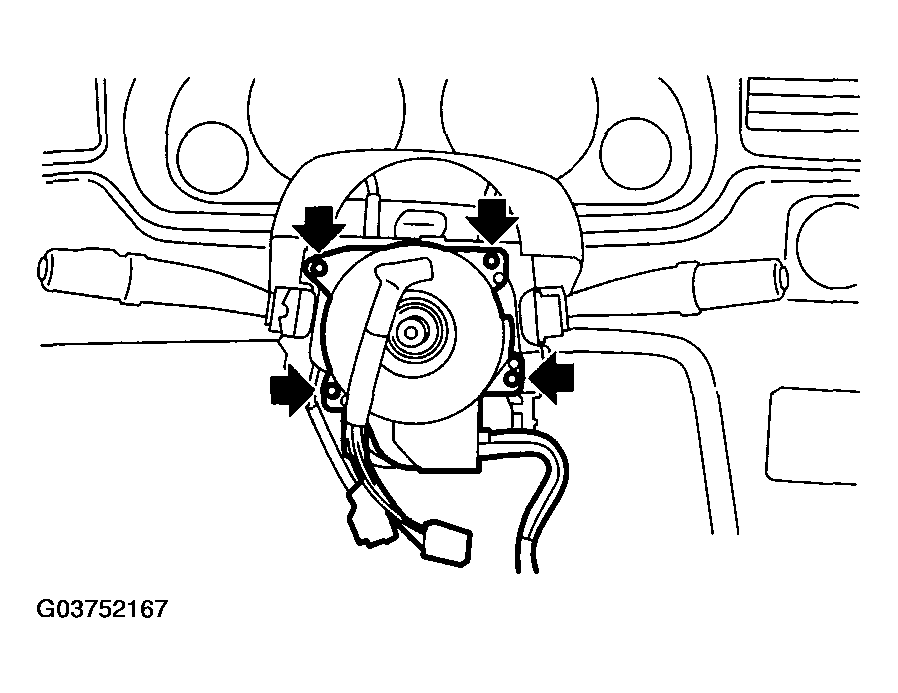

    Fig 2: Removing Roll Connector
    G03752167Courtesy of SUBARU OF AMERICA, INC.
