Steering Wheel: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Set tires to straight-ahead position.
  3. Remove airbag module. < Ref. to REMOVAL , Driver's Airbag Module . >
    WARNING: Always refer to "Airbag System" before performing airbag module service (if so equipped). < Ref. to INSPECTION , Driver's Airbag Module . >
  4. Remove steering wheel nut, and then draw out steering wheel from shaft using steering puller.
    NOTE: Make matching marks on steering wheel and steering column in advance.

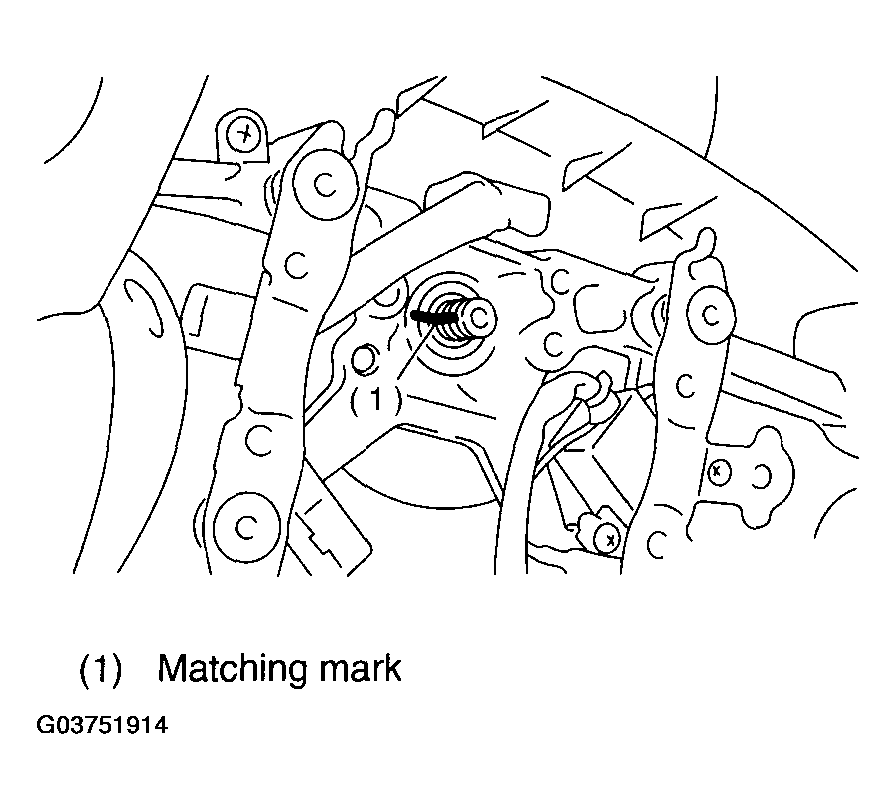

    Fig 1: Removing Steering Wheel Nut
    G03751914Courtesy of SUBARU OF AMERICA, INC.
