Front Differential Assembly: Installation

  1. Install the differential side retainers using ST.

    ST 499787000 WRENCH ASSY

  2. Install the bearing outer race to transmission case.
  3. Install the differential assembly.
    NOTE:
    • Be careful not to fold the sealing lip of oil seal.
    • Wrap the right and left spline sections of axle shaft with vinyl tape to prevent scratches.

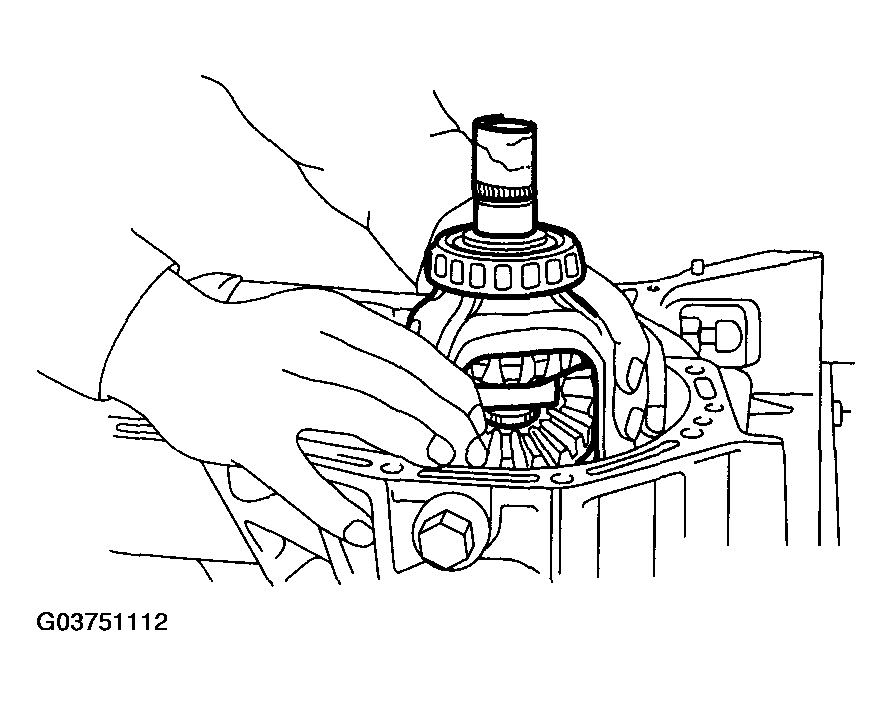

      Fig 1: Installing Differential Assembly
      G03751112Courtesy of SUBARU OF AMERICA, INC.
  4. Install the main shaft assembly.

    < Ref. to , INSTALLATION , Main Shaft Assembly. >

  5. Install the drive pinion assembly. < Ref. to , INSTALLATION , Drive Pinion Shaft Assembly. >
  6. Install the transmission case. < Ref. to , INSTALLATION , Transmission Case. >
  7. Install the transfer case with extension case assembly. < Ref. to , INSTALLATION , Transfer Case and Extension Case Assembly. >
  8. Install the manual transmission assembly to vehicle. < Ref. to , INSTALLATION , Manual Transmission Assembly. >
